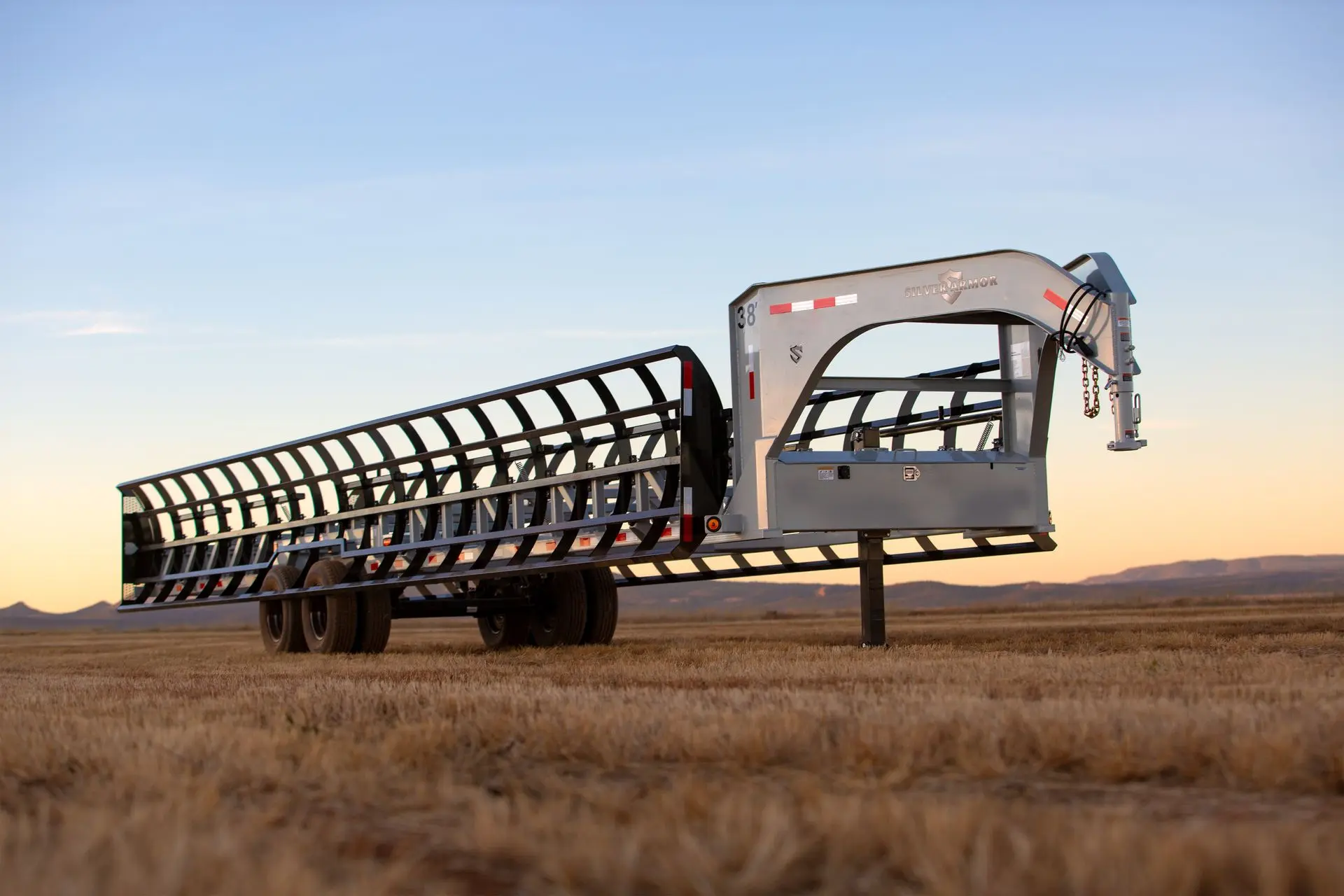

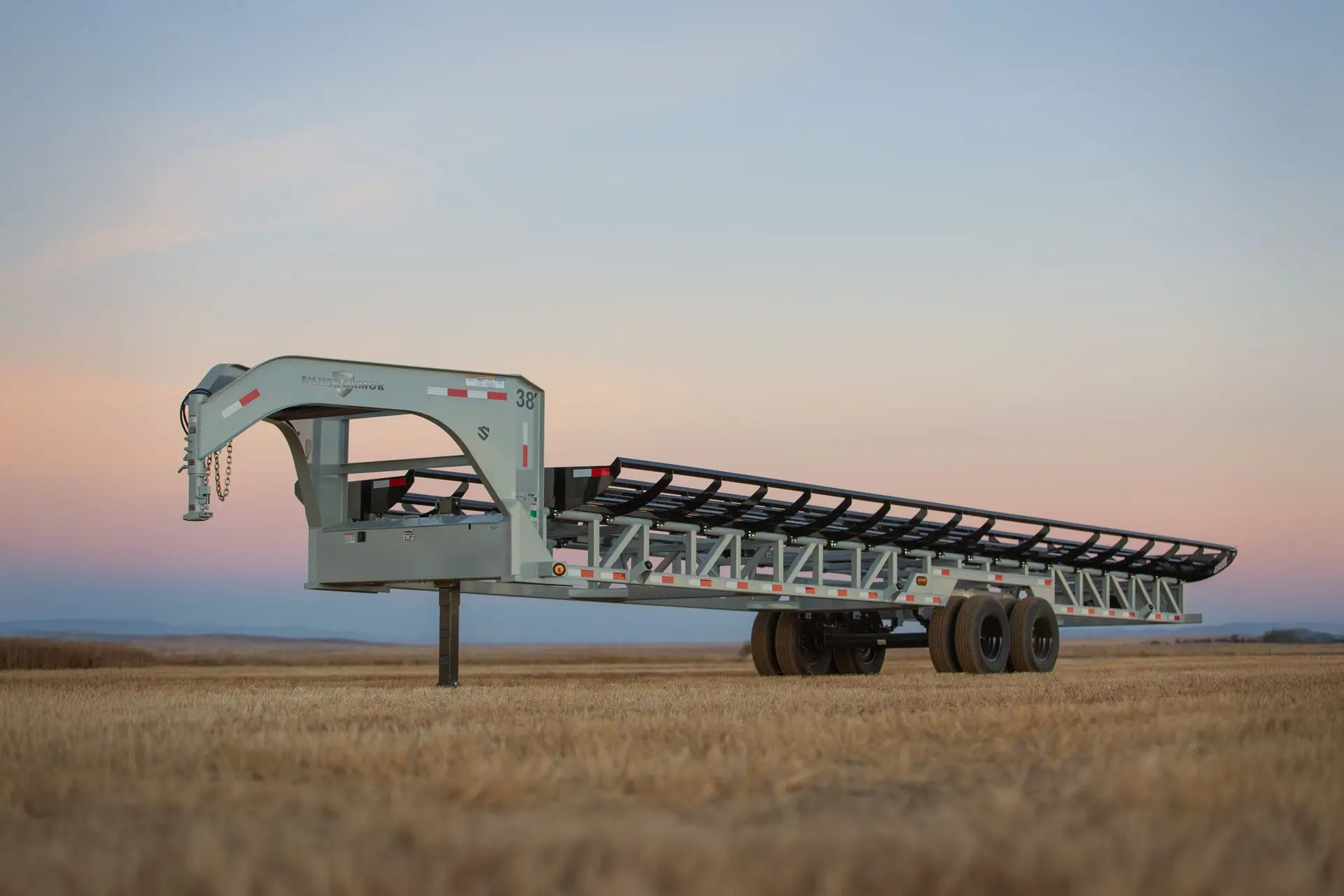

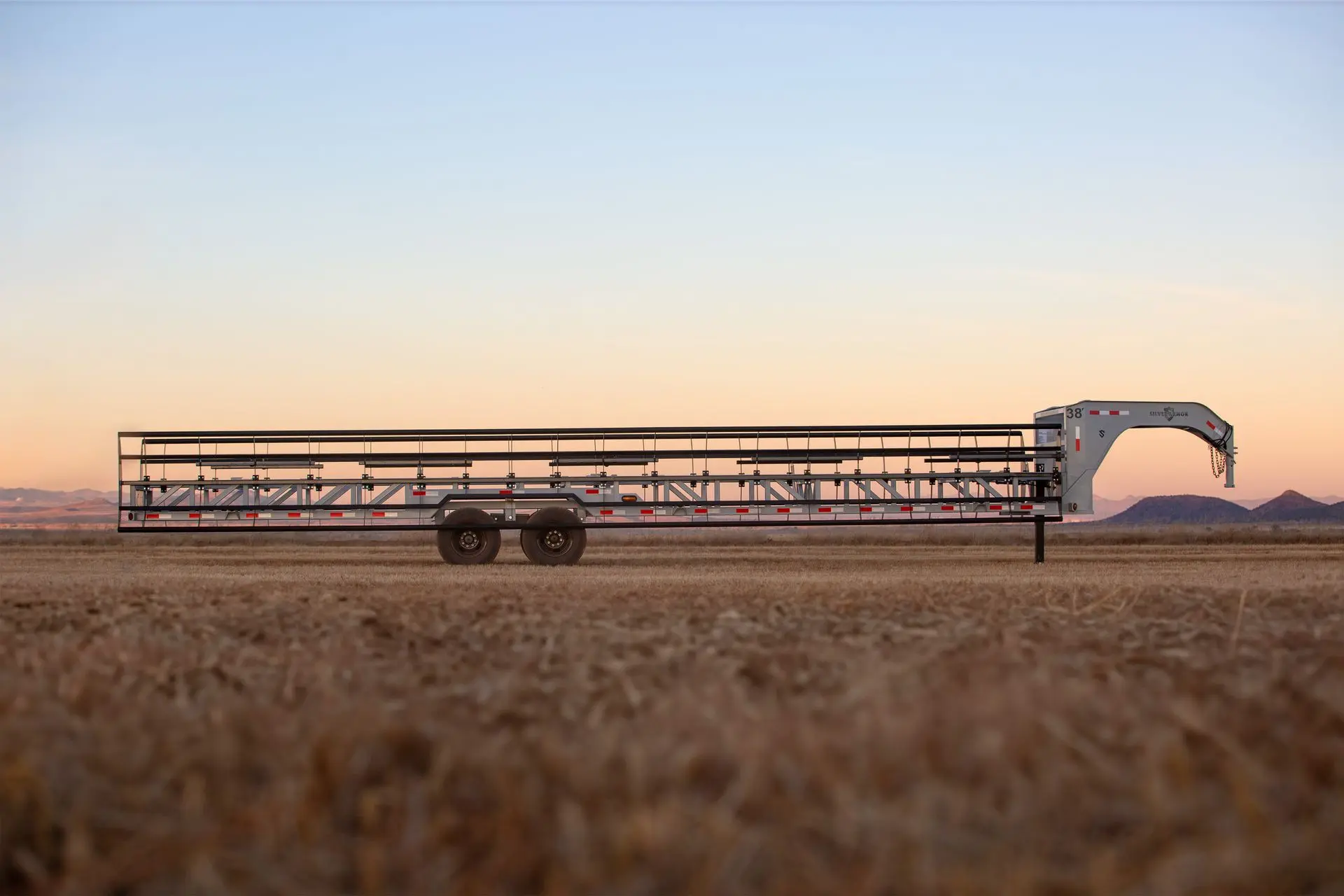

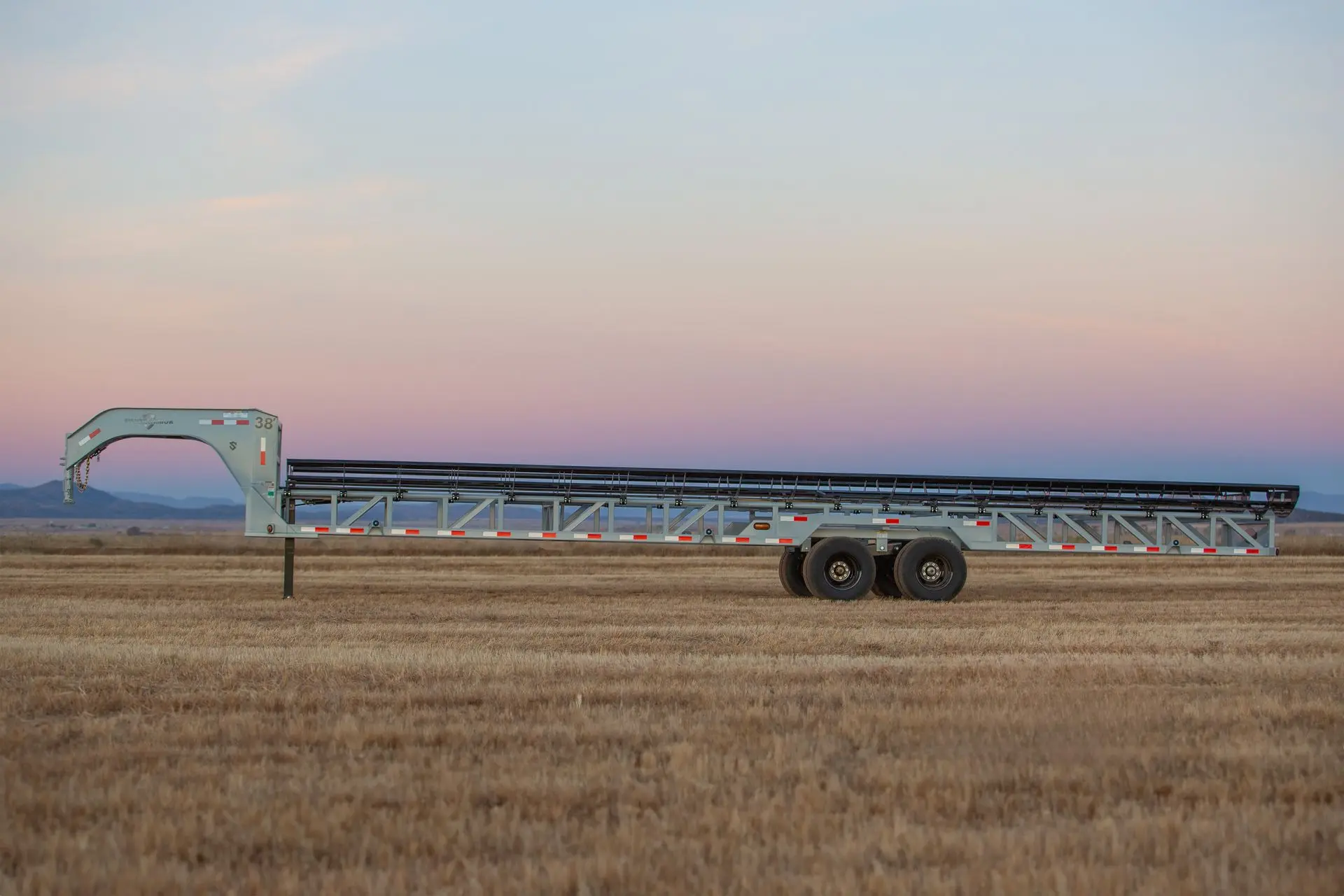

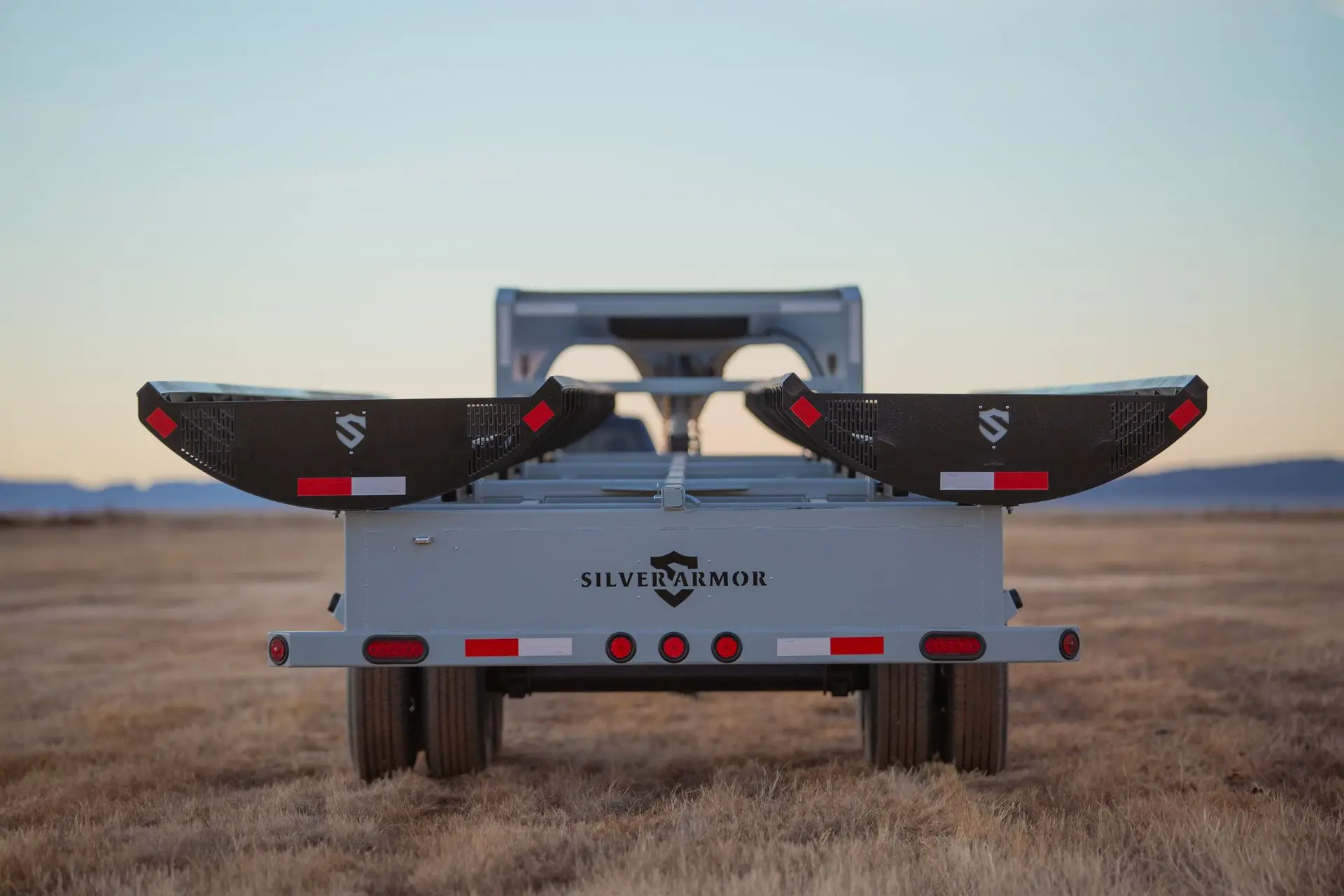

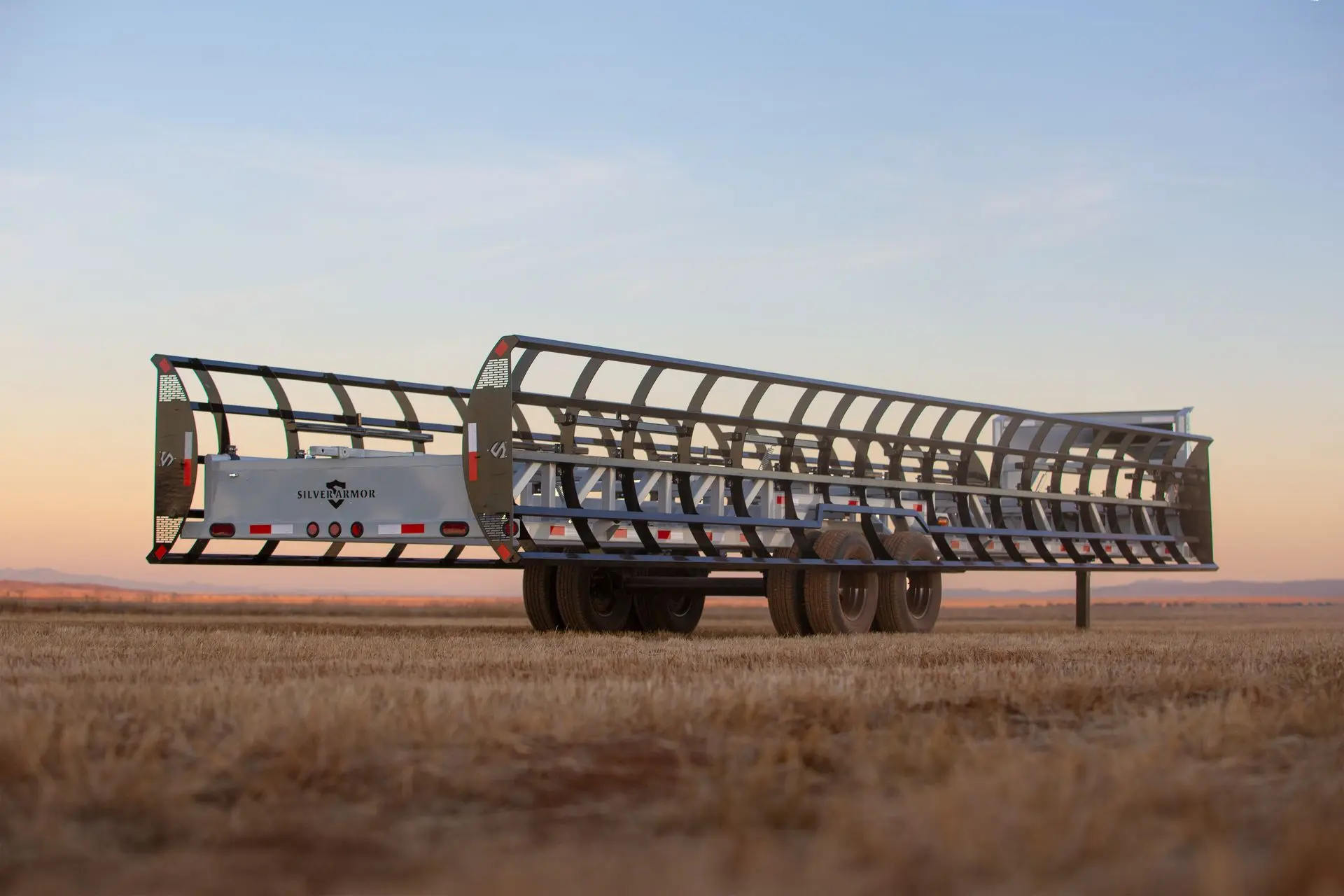

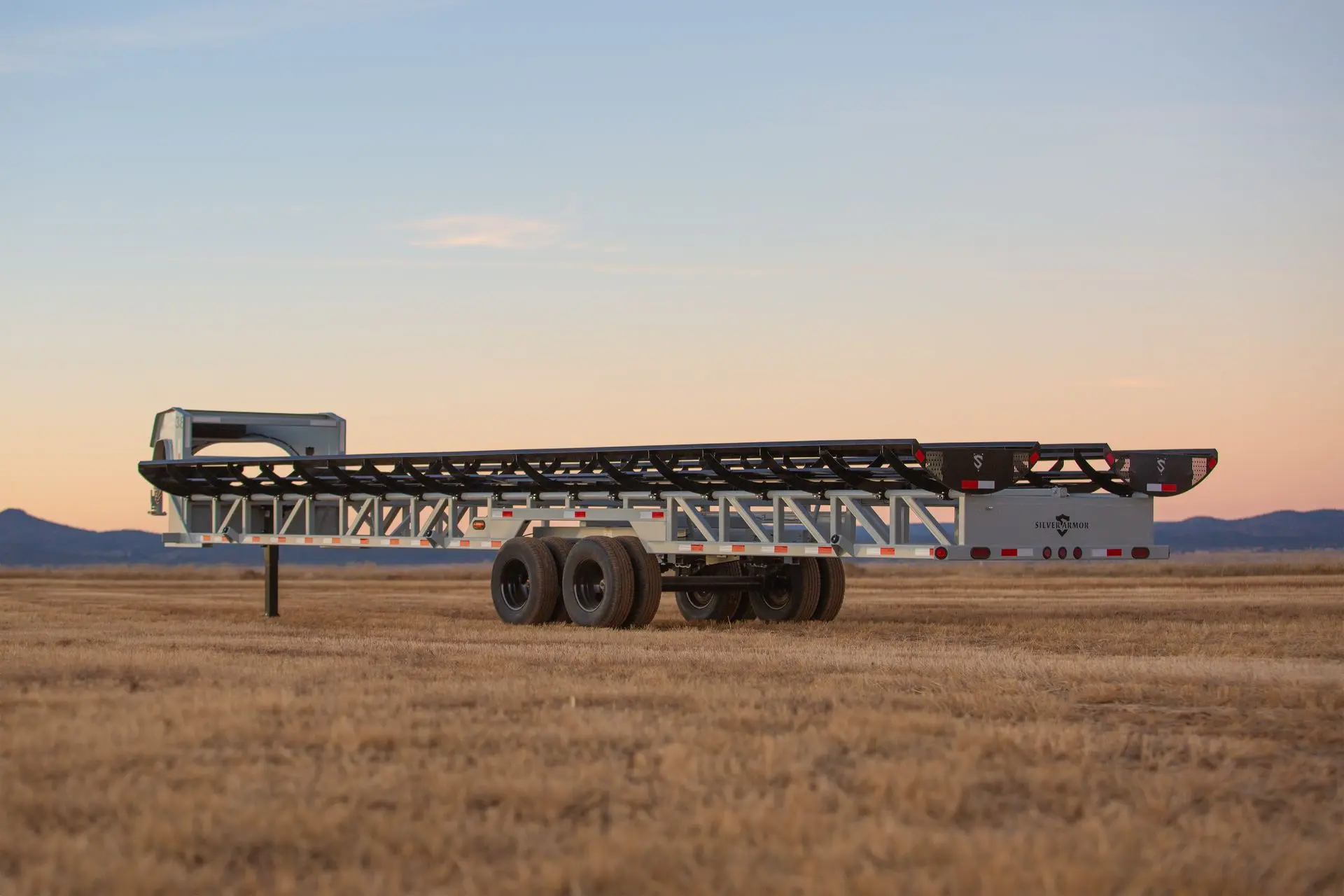

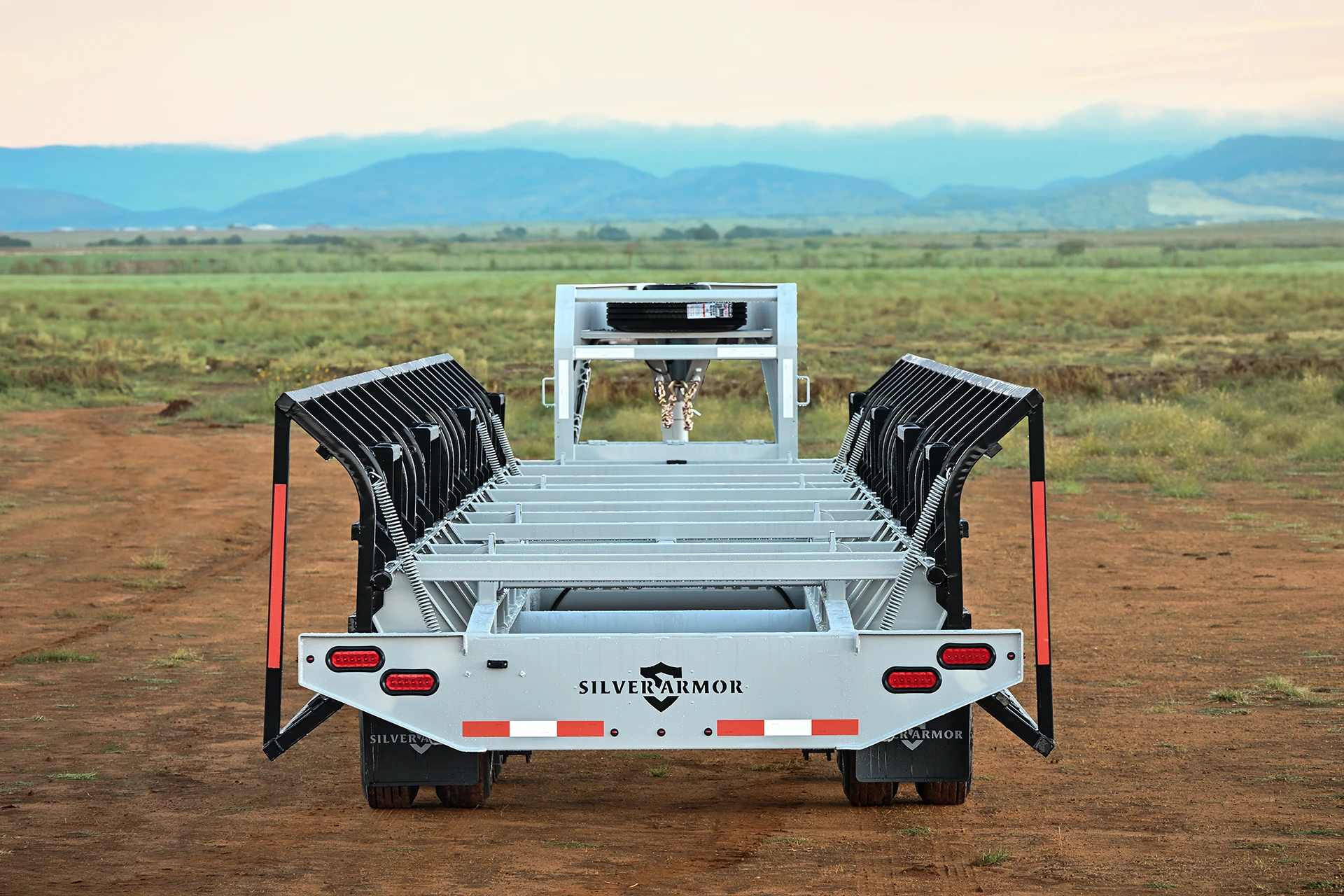

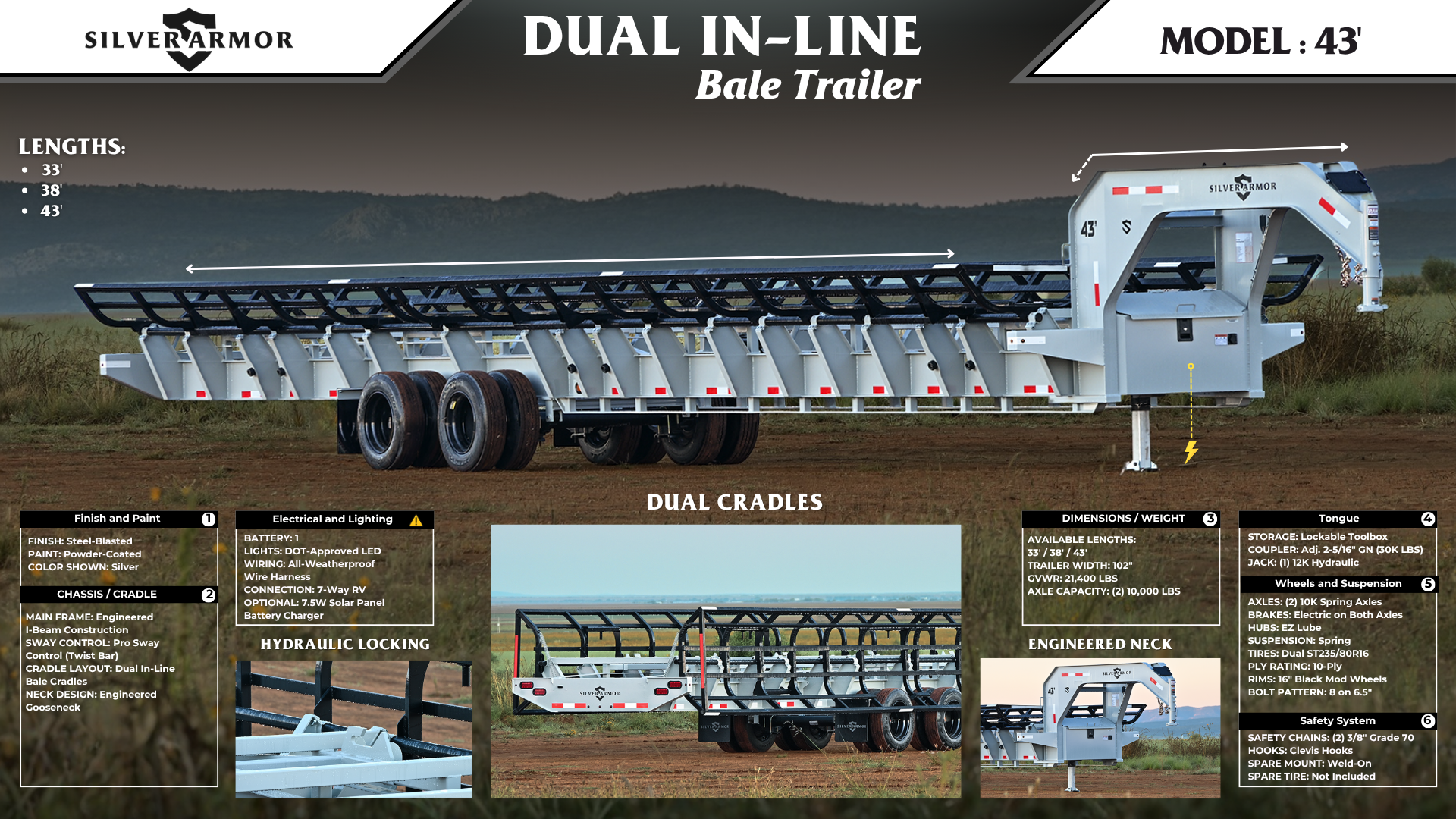

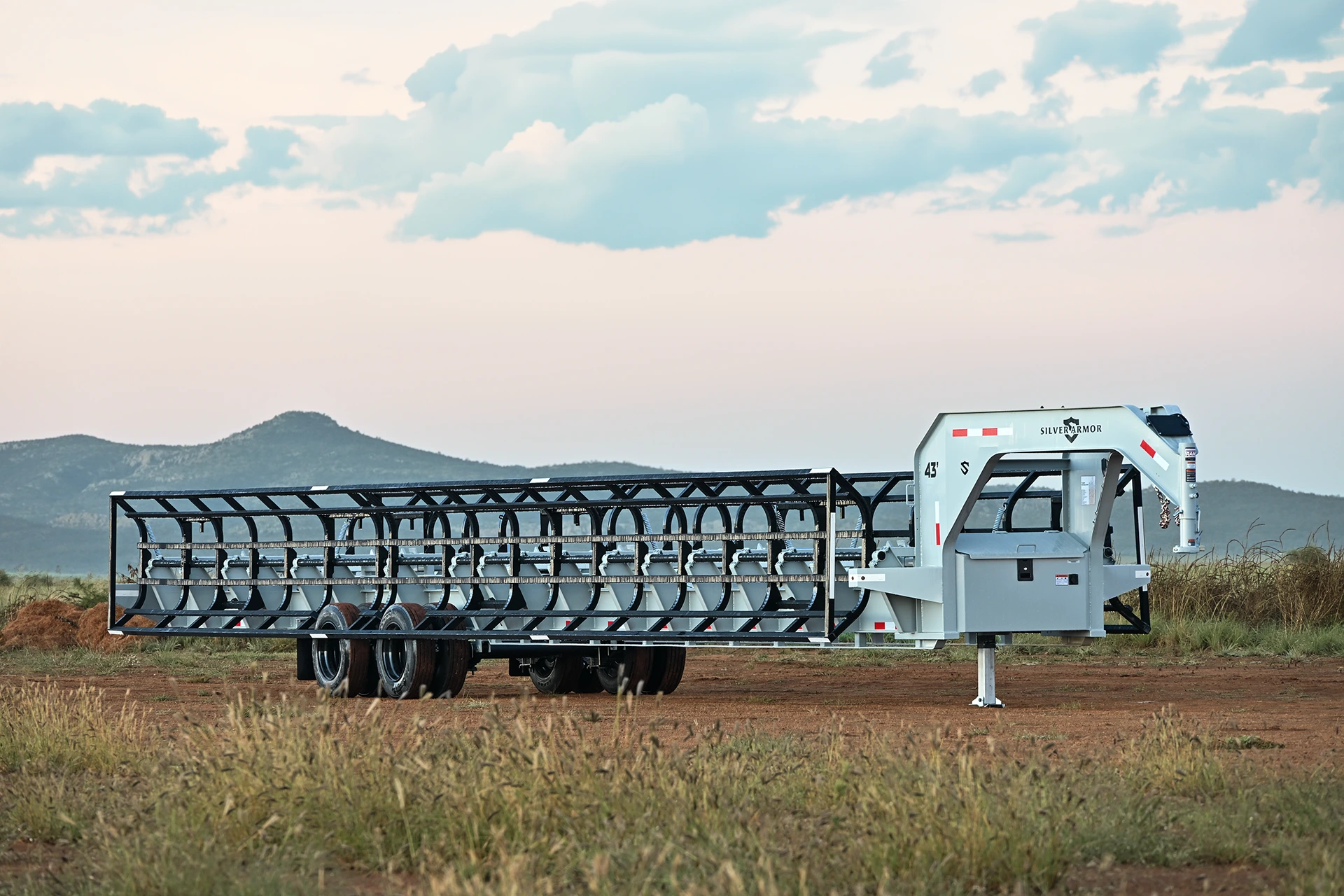

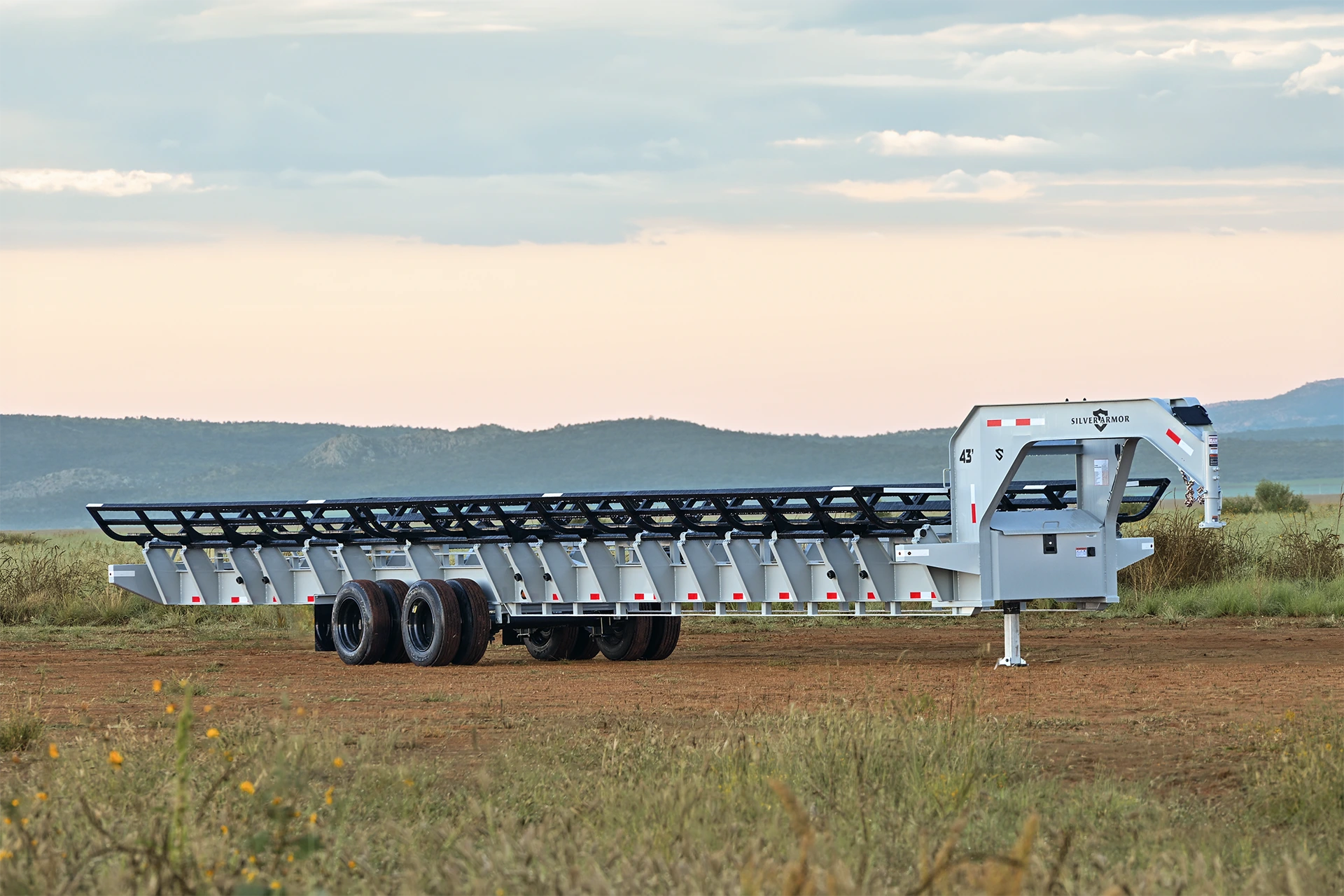

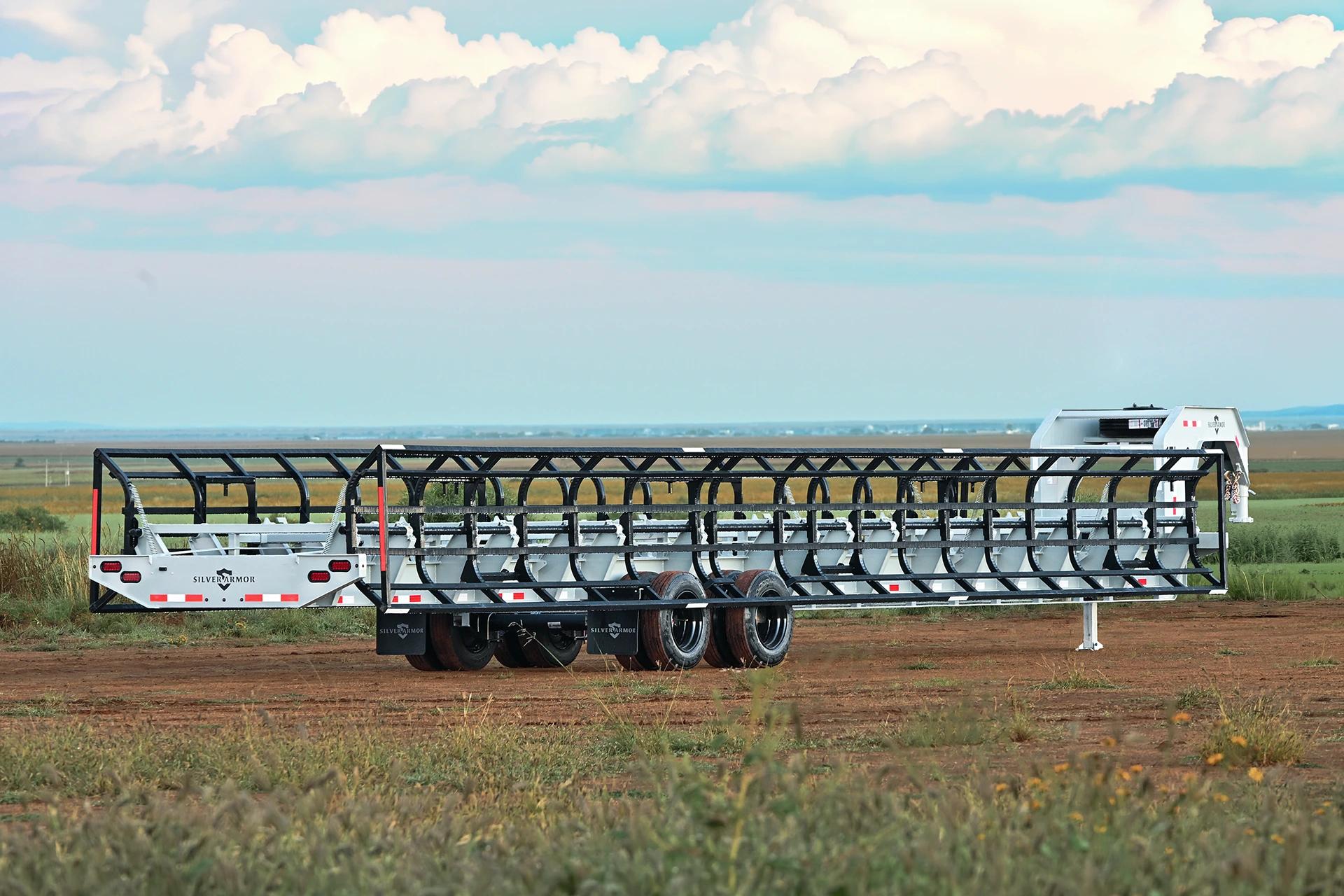

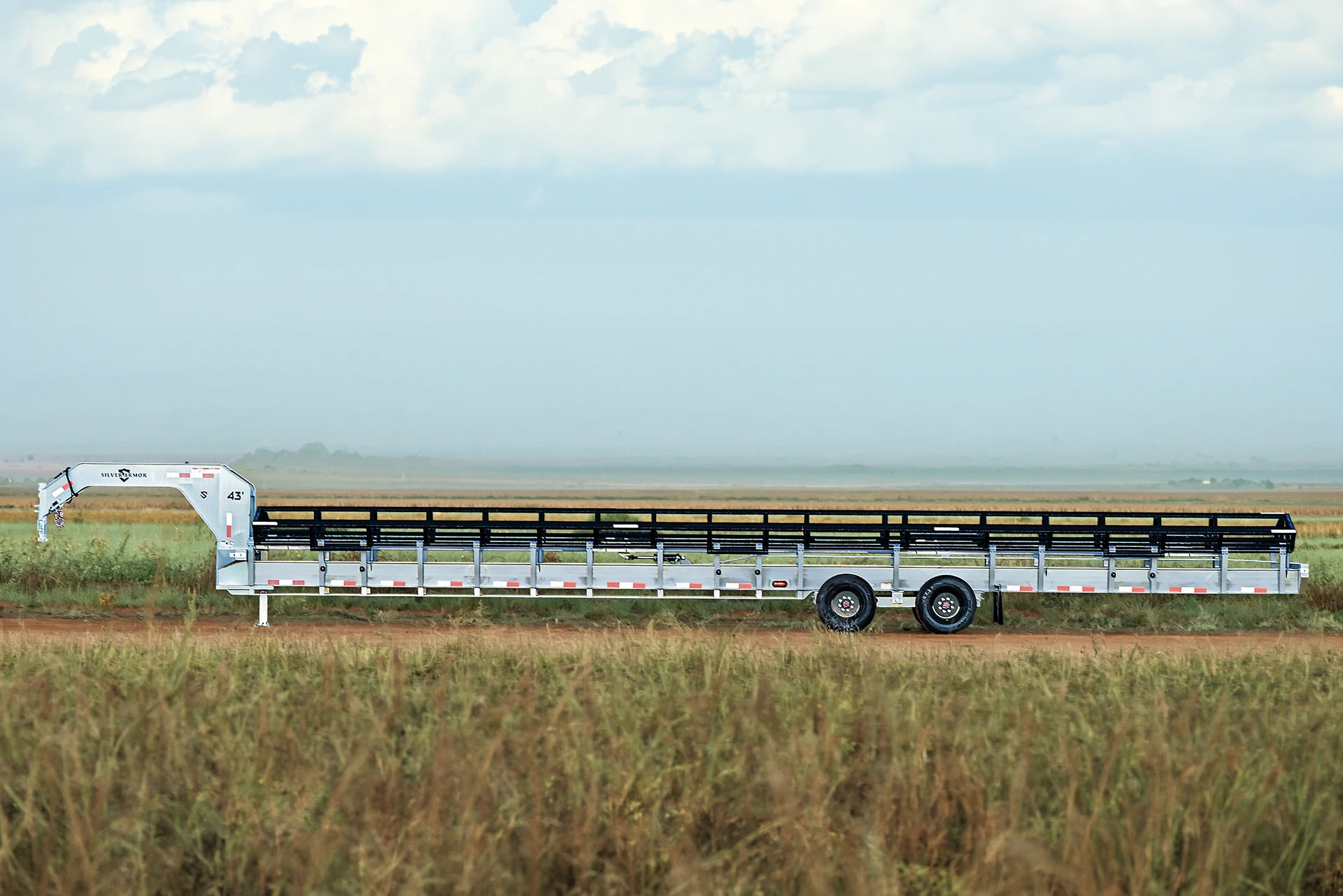

The Dual In-Line Bale Trailer

  • Main Frame: 3" x 4" x 3/16" Square Tubing
  • Cradle Capacity: 12, 14, and 16 Bales
  • Axles: 2 x 10,000 LBS Oil Bath Hubs Axles

The Dual In-Line Bale Trailer

  • Main Frame: 3" x 4" x 3/16" Square Tubing
  • Cradle Capacity: 16 Bales
  • Axles: 2 x 10,000 LBS Oil Bath Hubs Axles

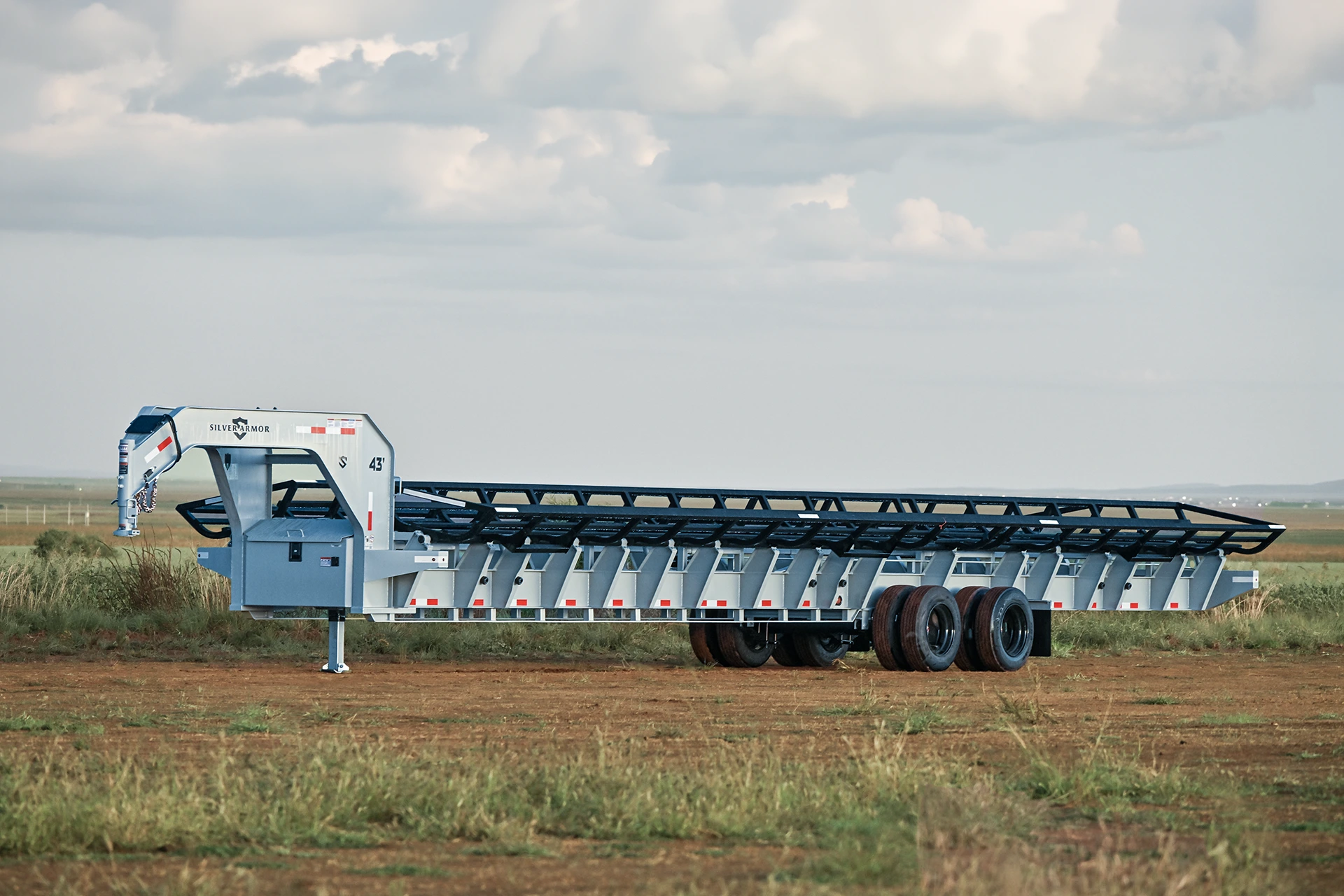

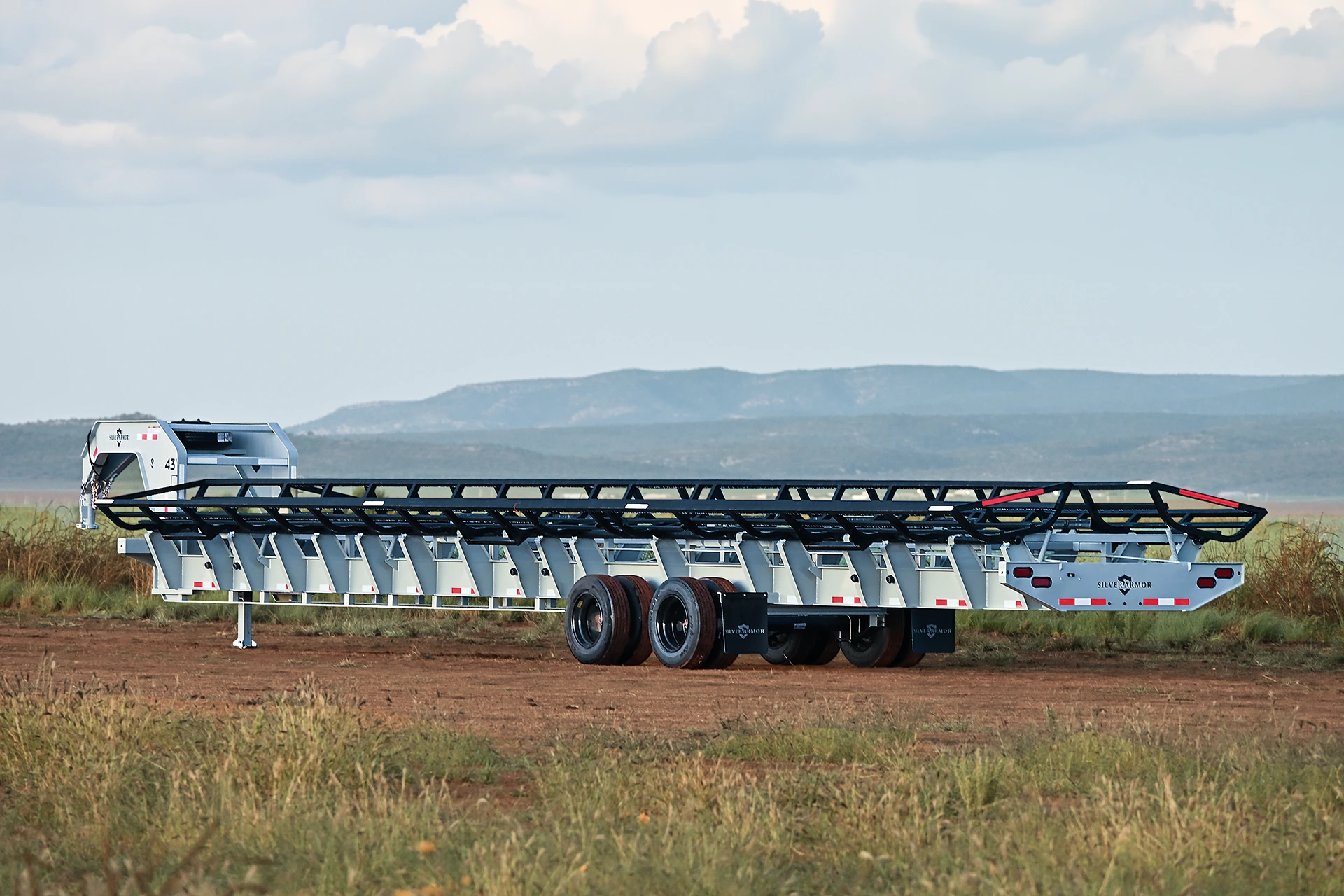

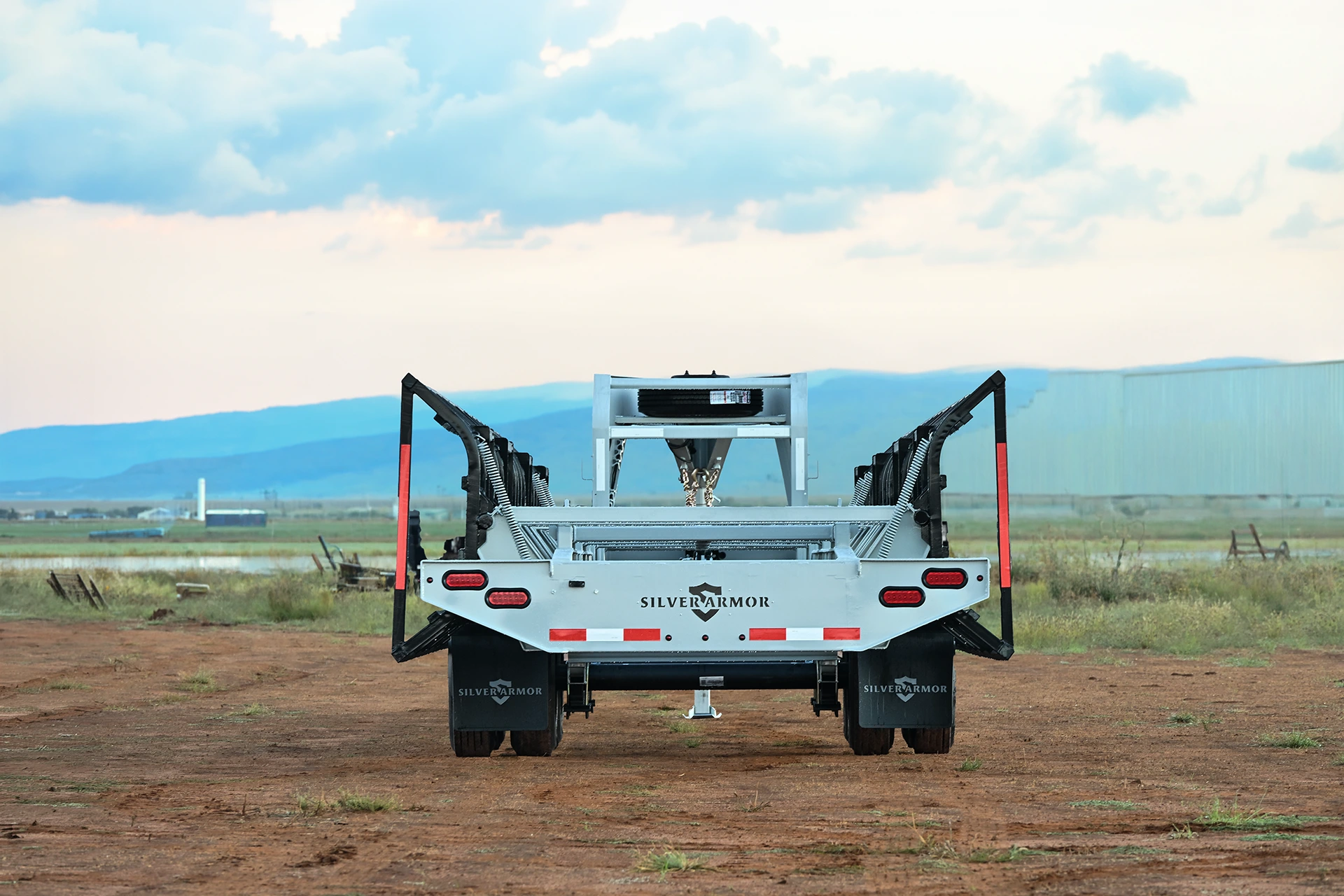

GALLERY

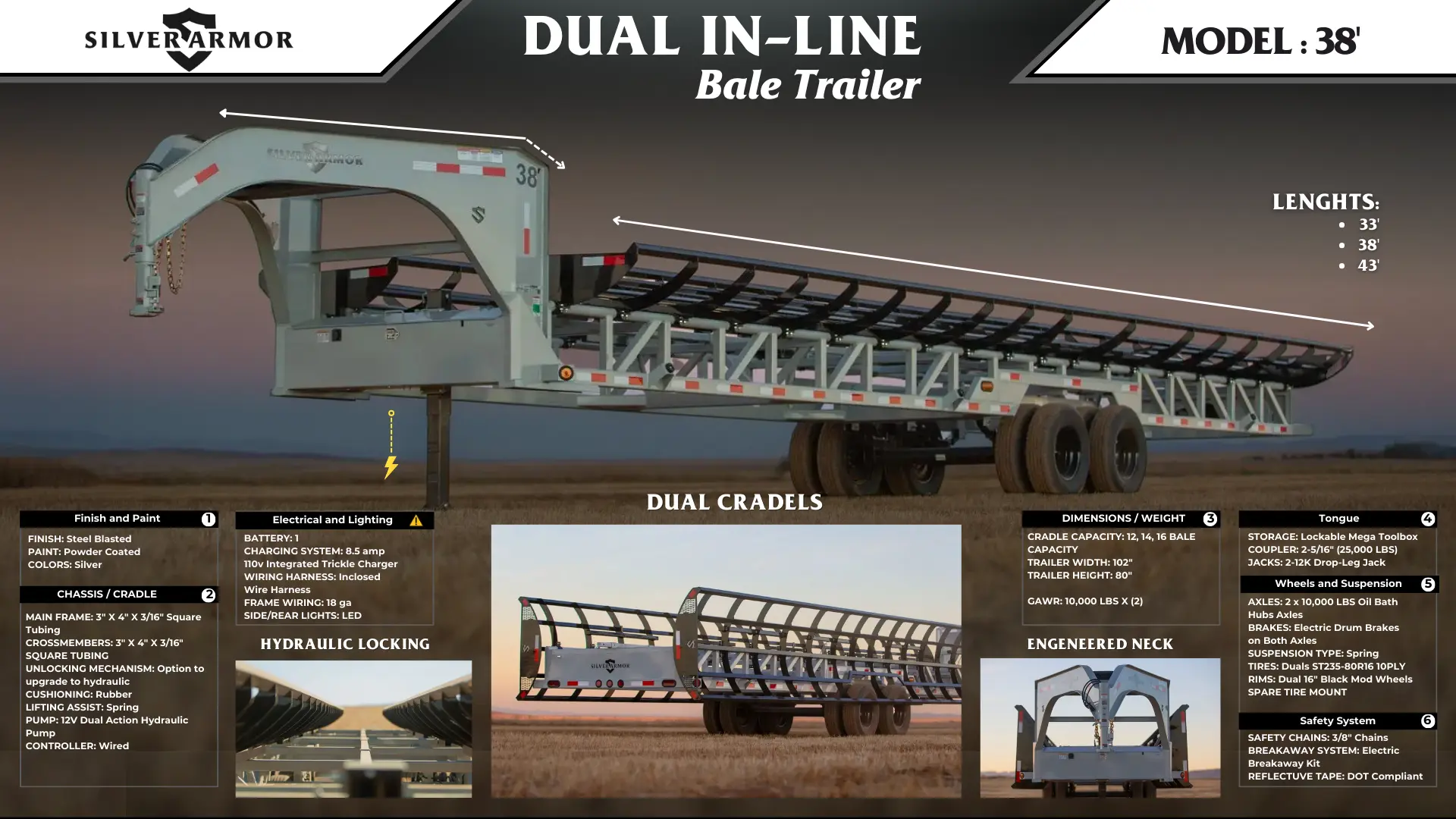

                                        SPEC BROCHURE:
Brochure Link
Download

TRAILER FEATURES

TRAILER FEATURES

DIMENSIONSFINISHWEIGHT RATINGSJACKSTONGUECHASSIS CRADLESAFETY SYSTEMSUSPENSIONRUNNING GEARELECTRICAL HYDRAULIC SYSTEMDOWNLOAD BROCHURE

DIMENSIONS

Cradle Capacity: 12, 14, and 16 Bale Capacity
Cradle Length: 33', 38', 43'
Trailer Width: 102"
Trailer Height: 80”

FINISH

Prep: Steel Blasted
Paint Type: Powder Coat
Colors: Silver

WEIGHT RATINGS

​GAWR: 10,000 lbs x (2)

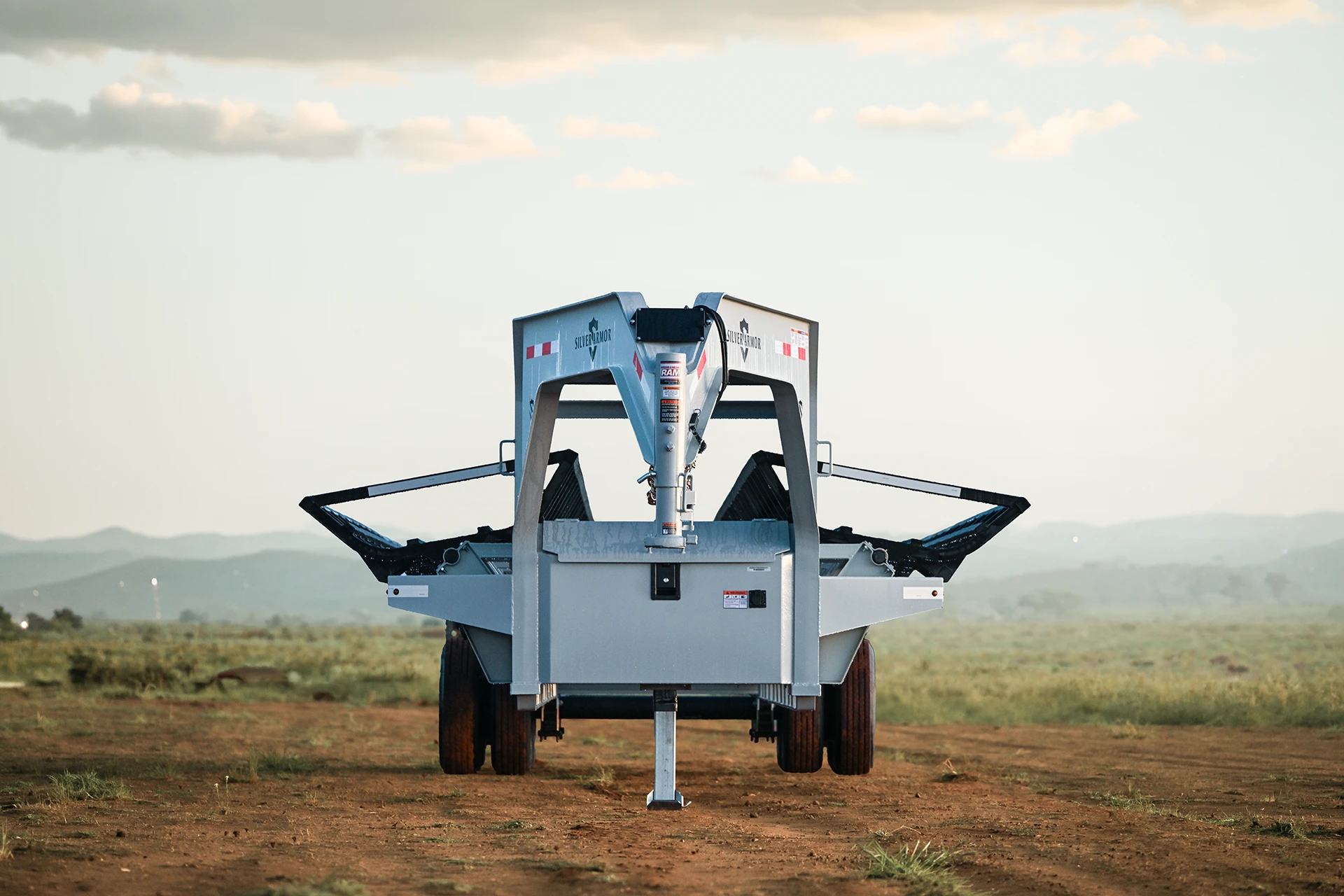

JACKS

​Front Jacks: 1 x RAM Drop Leg Jack (12,000 lbs)

  • Option to Upgrade to (12,000 lbs) Hydraulic Jack

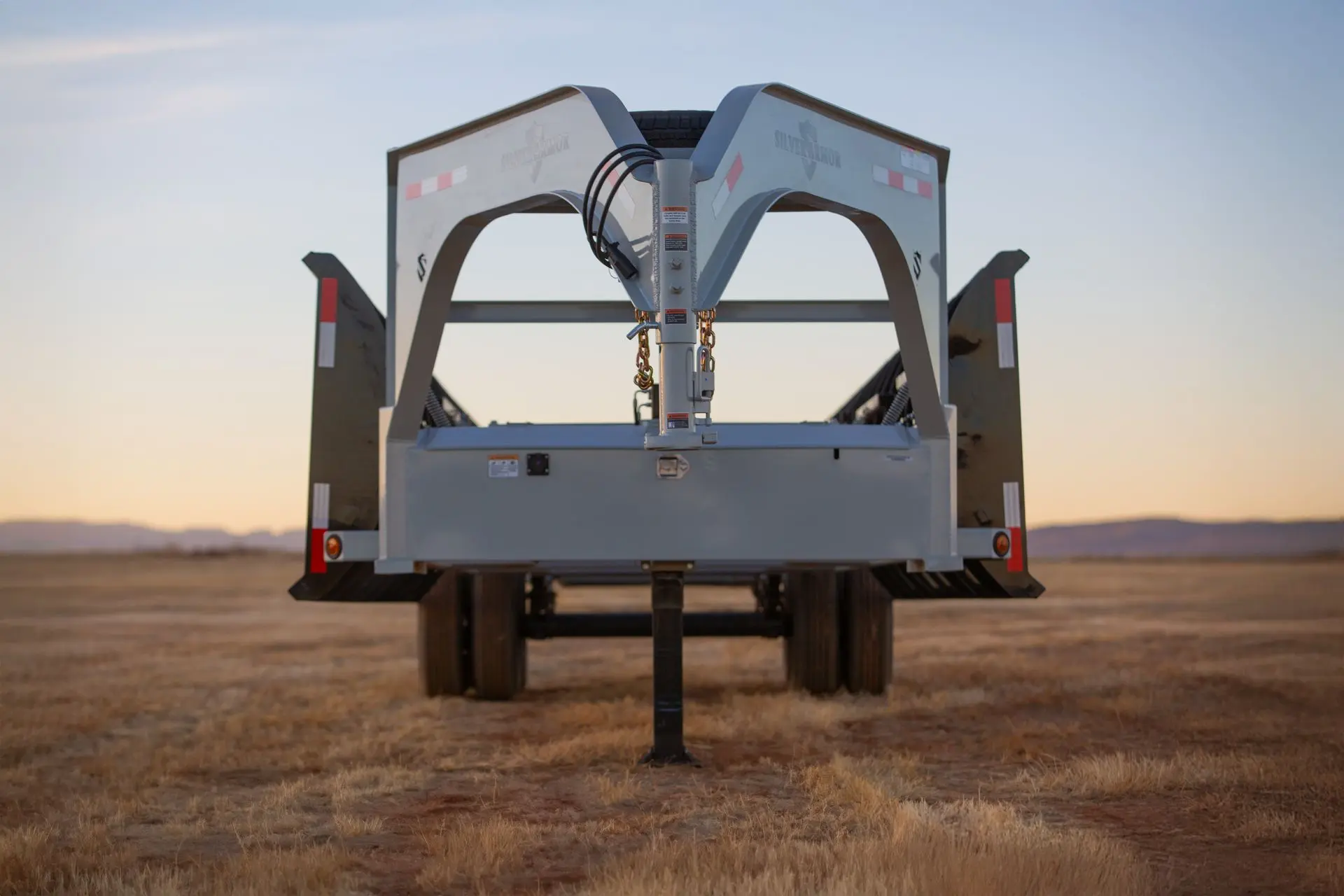

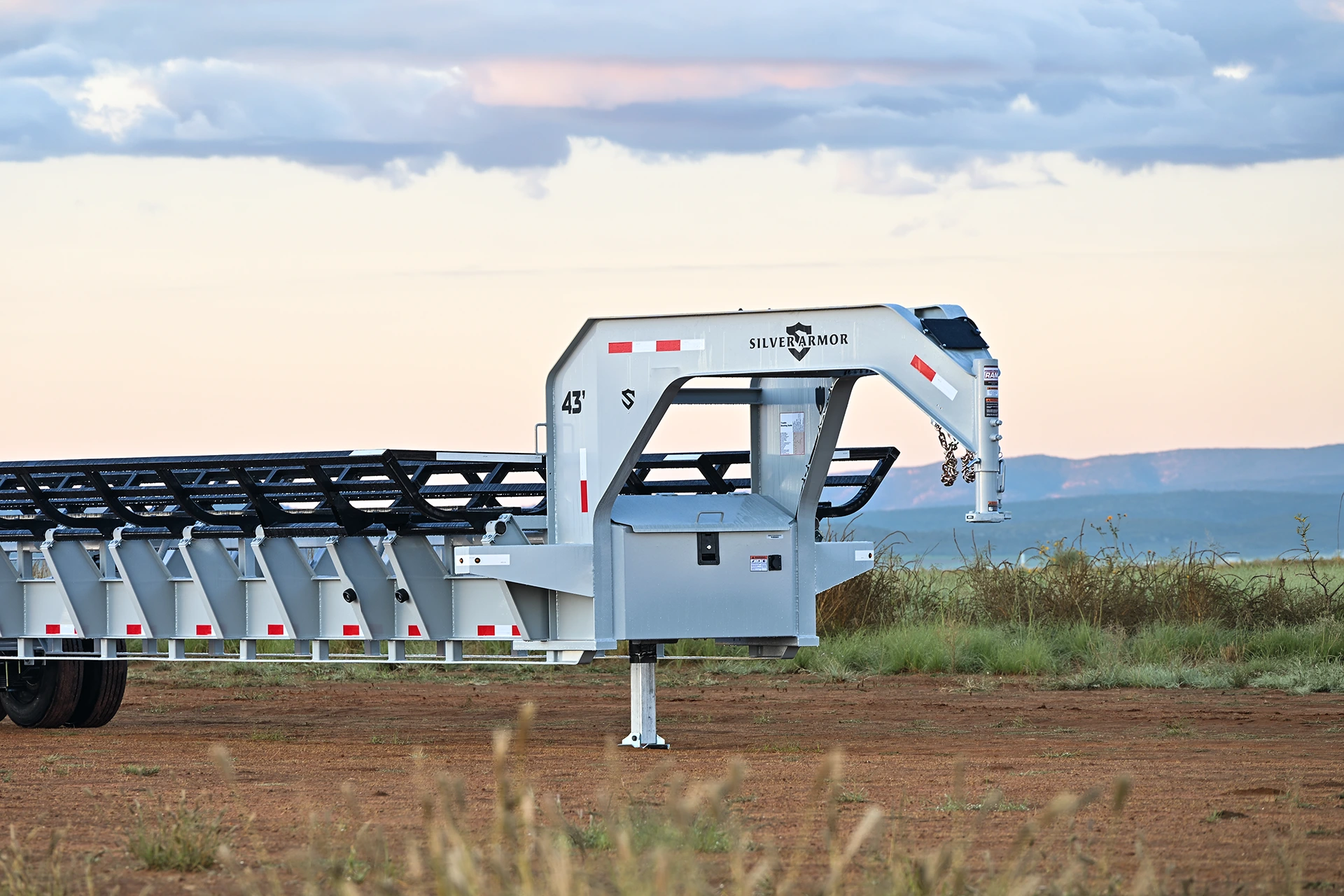

TONGUE

​Coupler: 2-5/16" (25,000 LBS)
Toolbox: Yes (Houses Battery and Pump)
Neck Frame: I-Beam Manufactured from 1/4" Steel Plate

CHASSIS

​Main Frame: 3" x 4" x 3/16" Square Tubing
Crossmembers: 3" x 4" x 3/16" Square Tubing

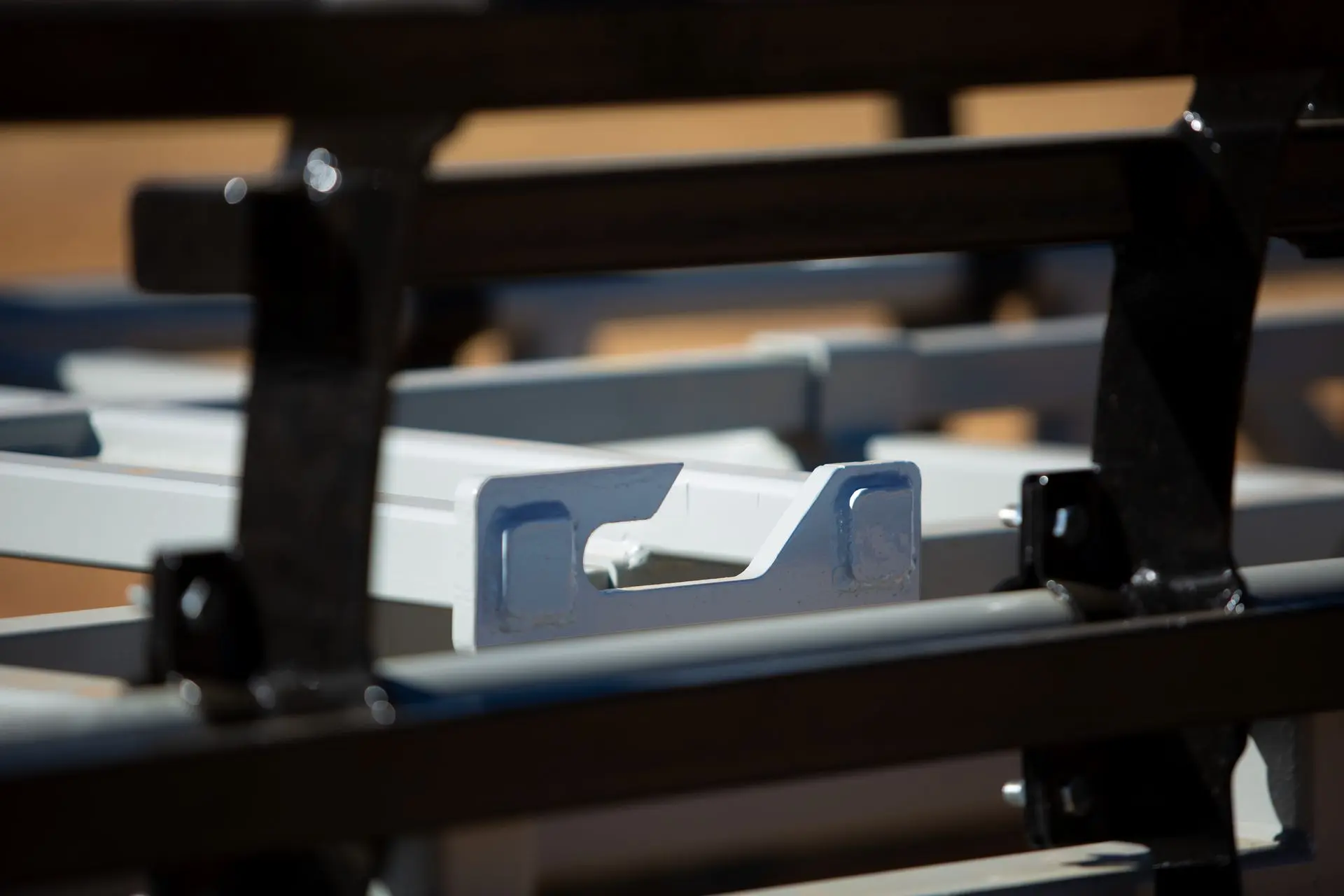

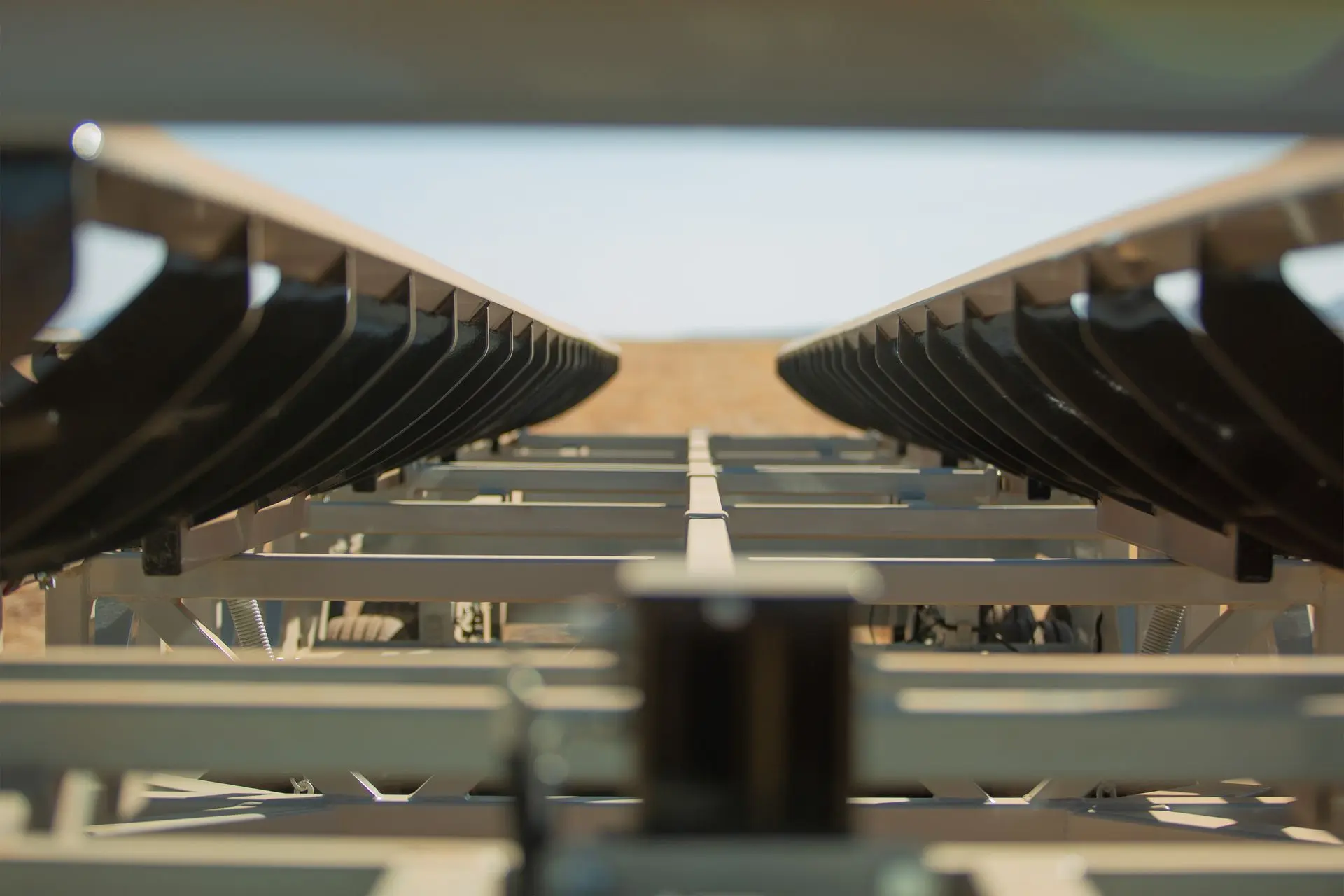

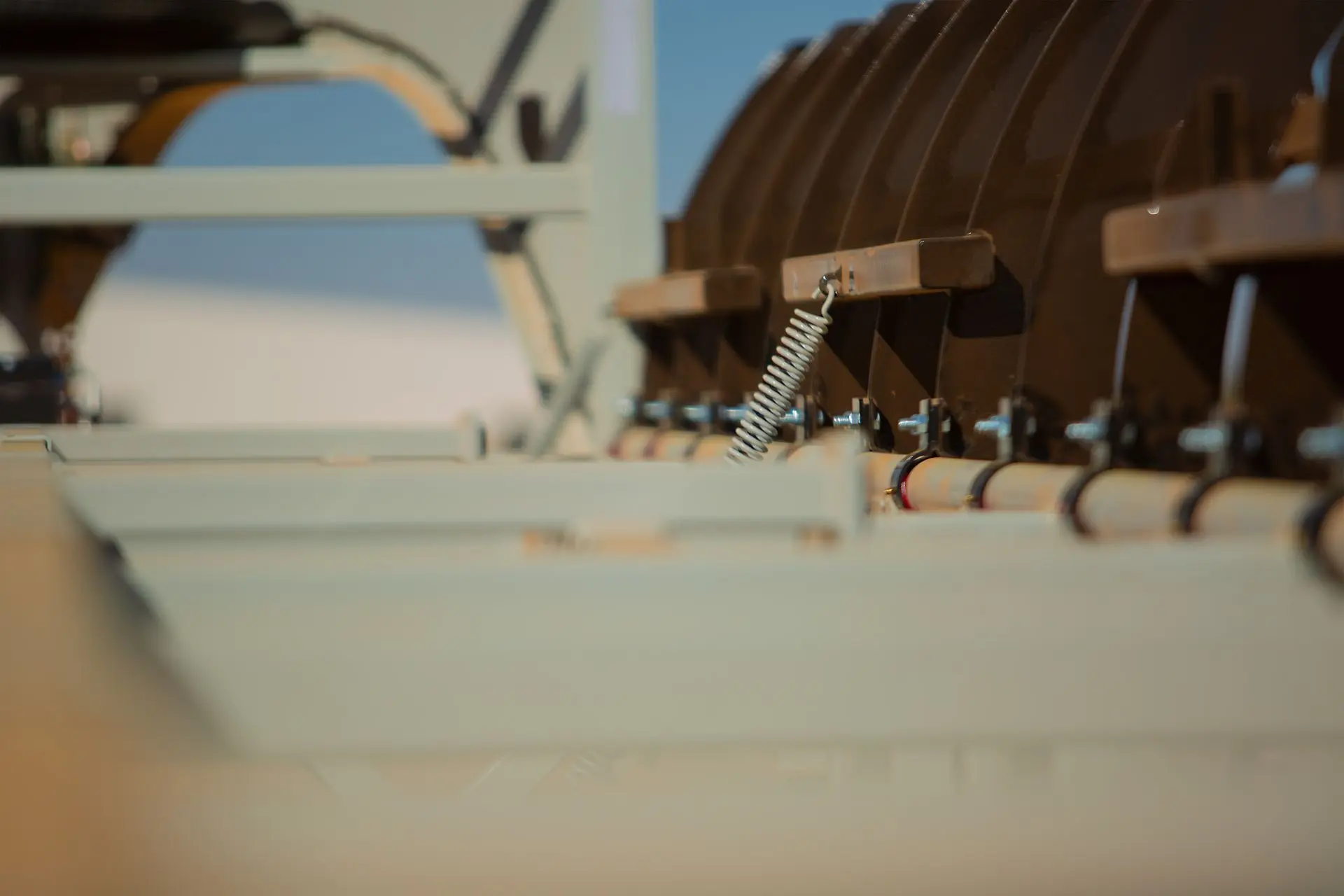

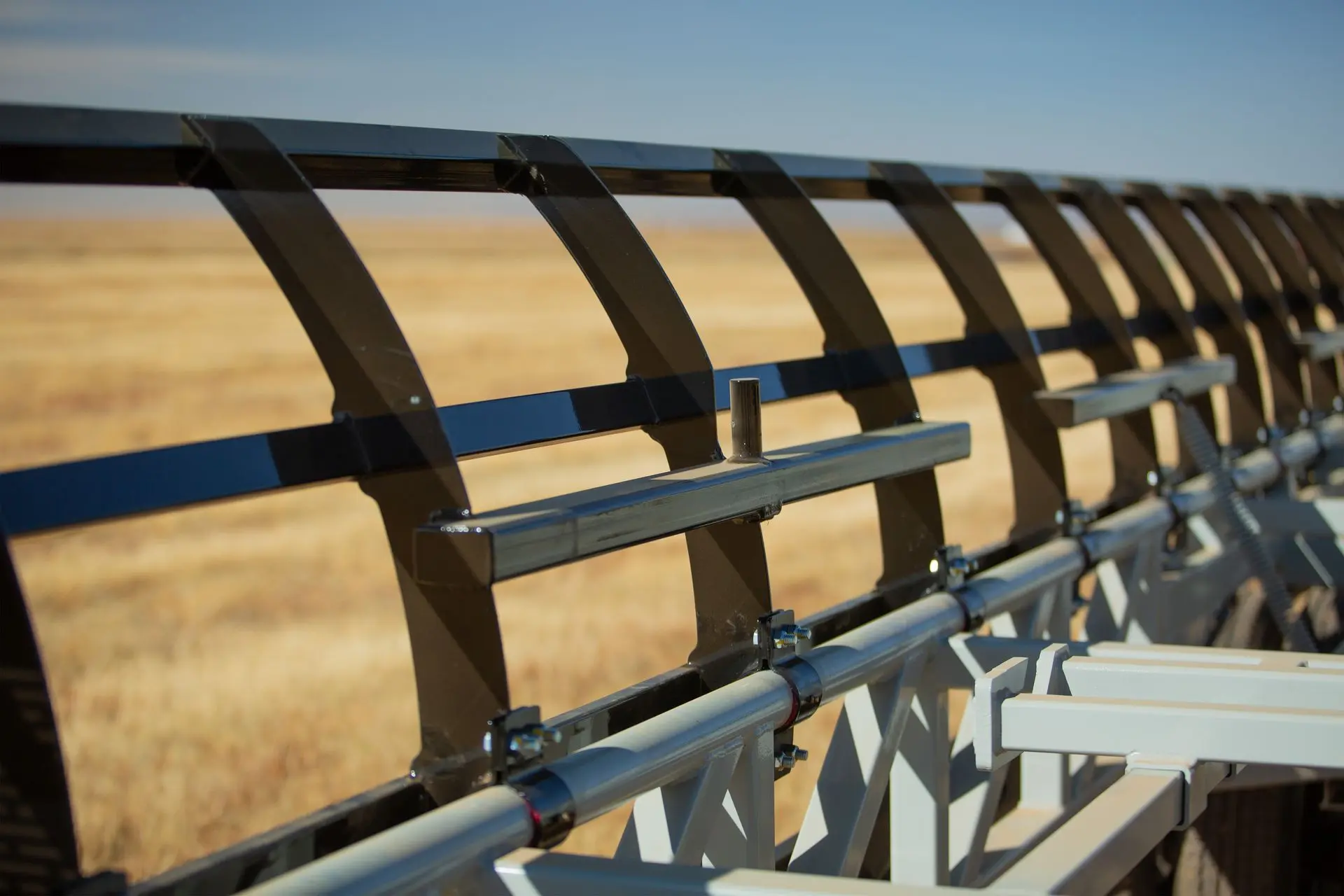

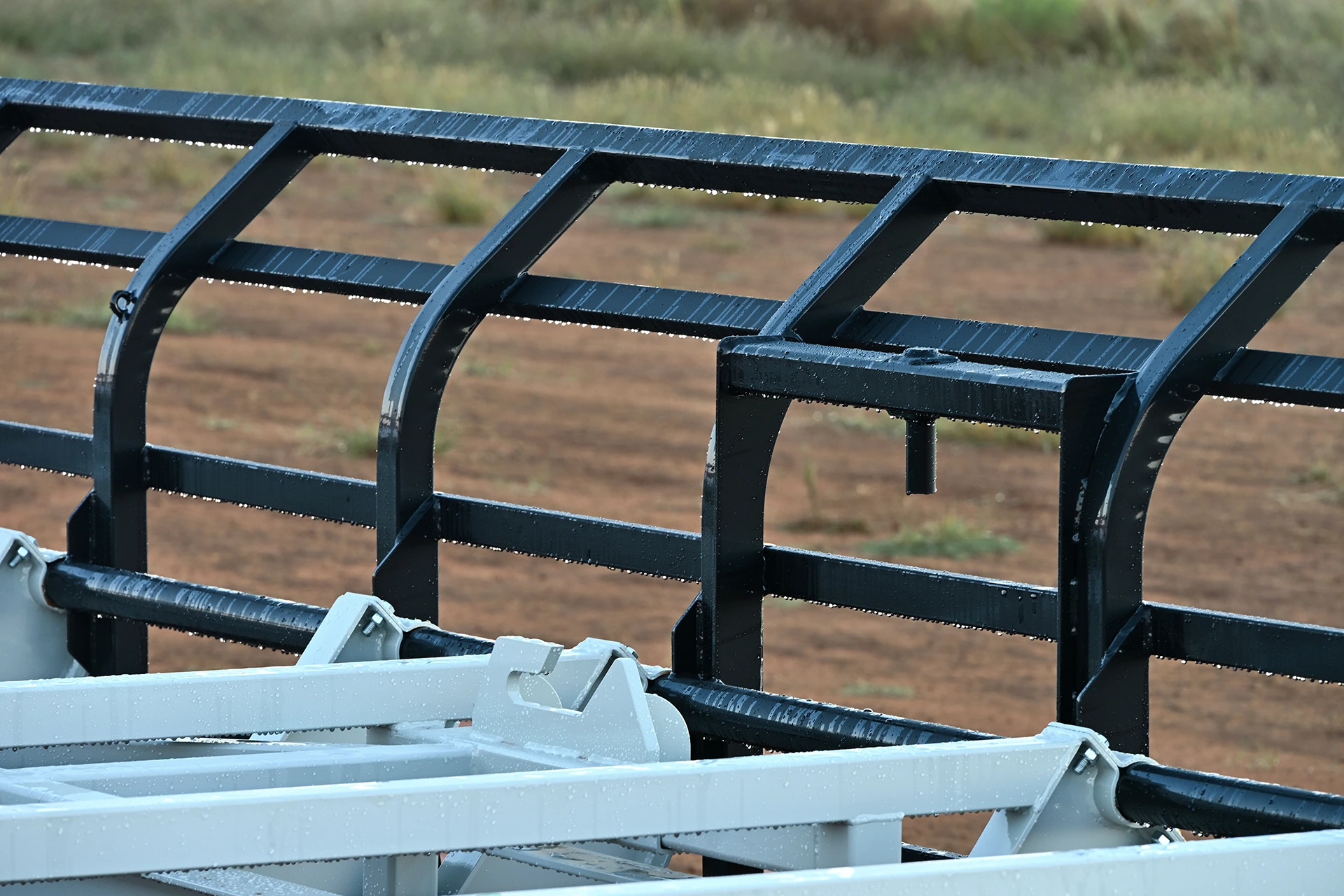

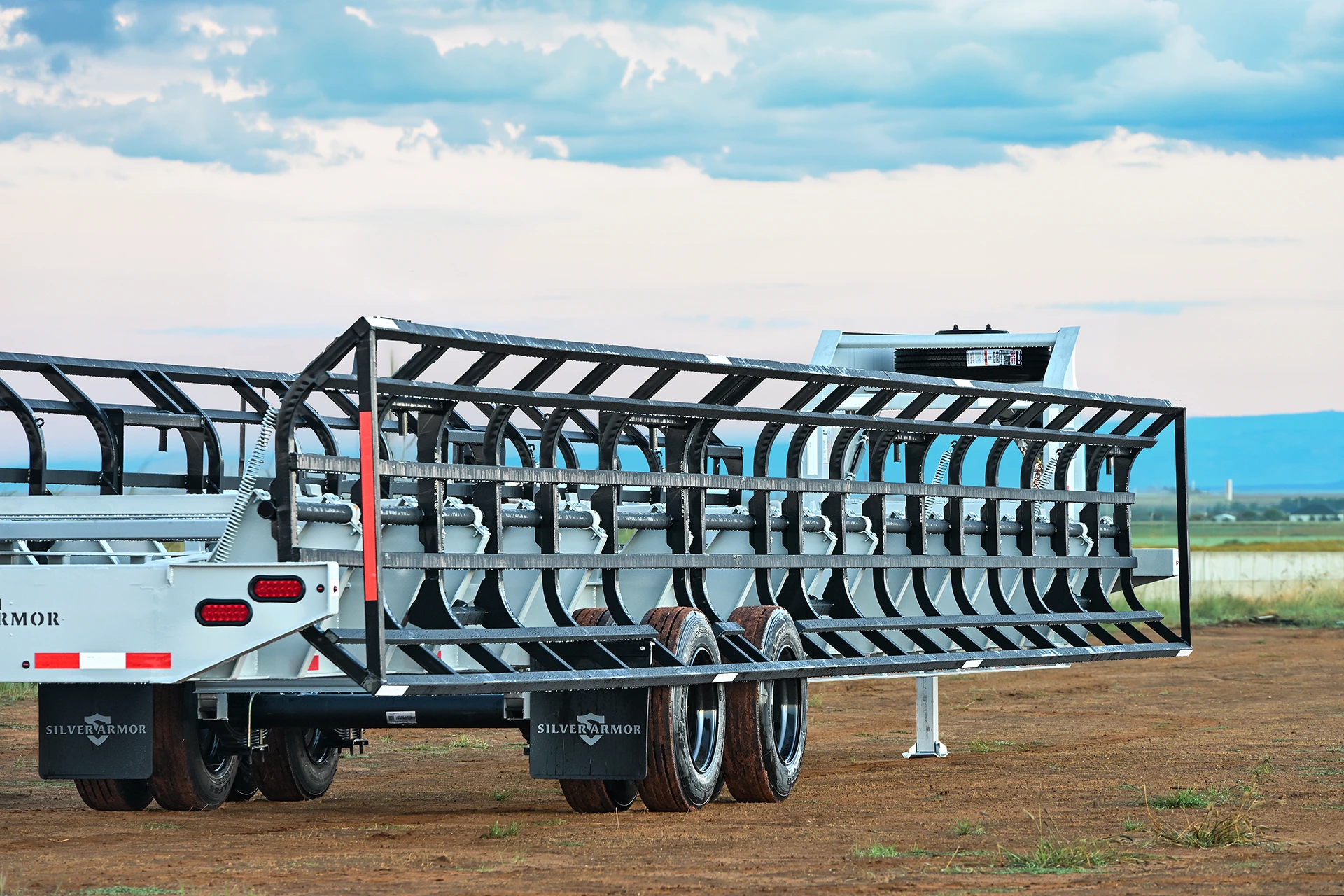

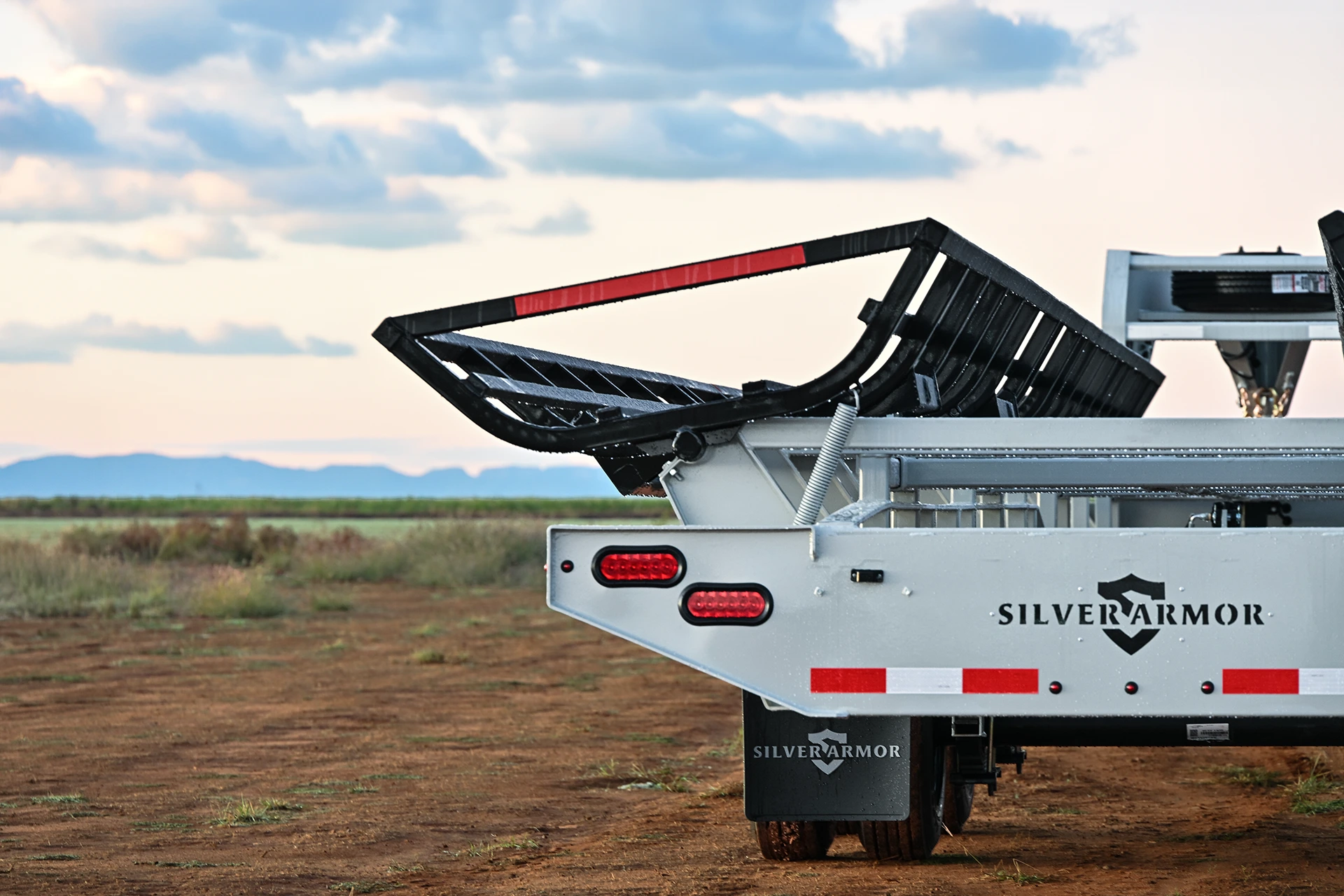

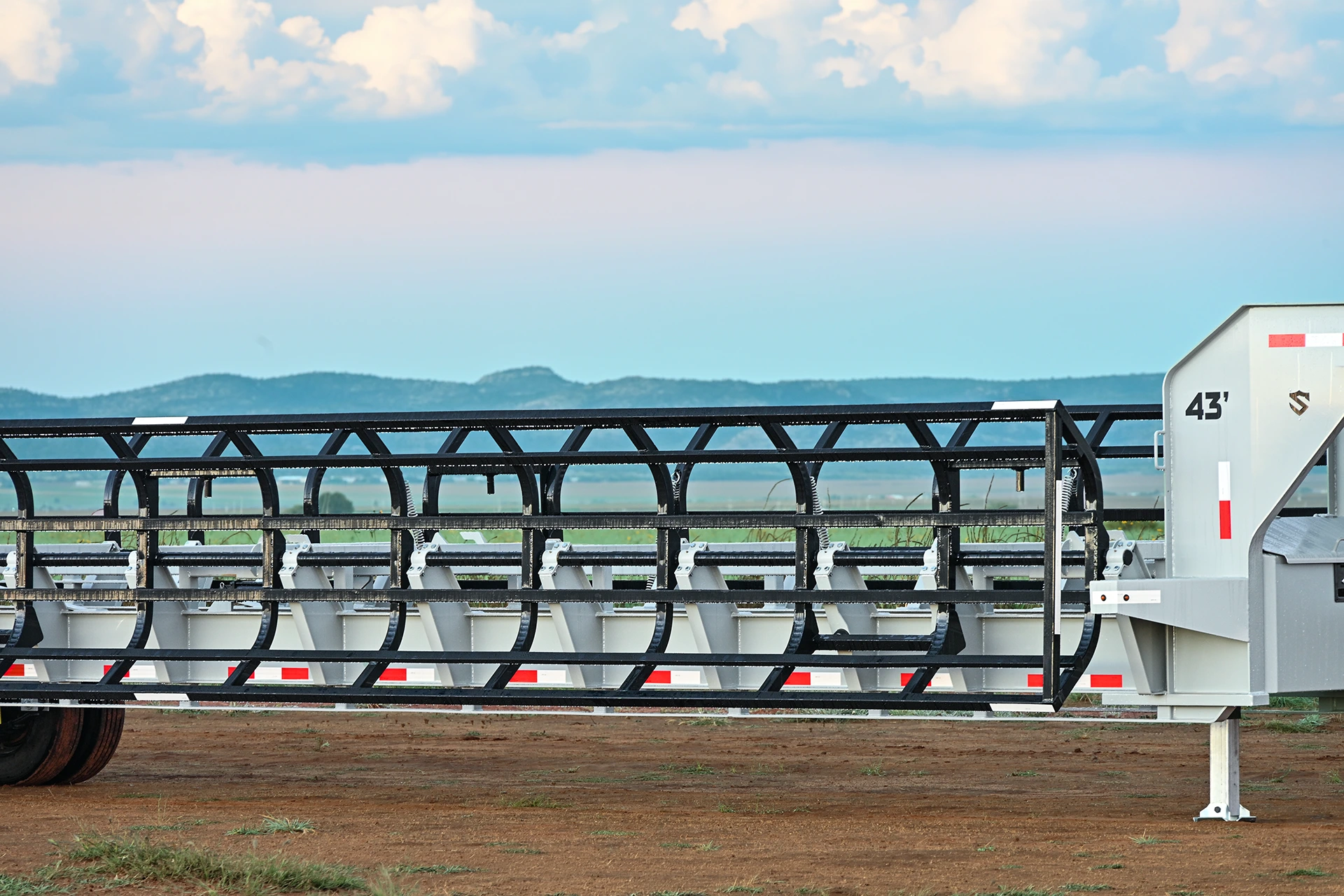

CRADLE

Unlocking Mechanism: Option to Upgrade to Hydraulic
Cushioning: Rubber
Lifting Assist: Spring

SAFETY SYSTEM

​Safety Chains: 3/8" Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: DOT Compliant Reflective tape

SUSPENSION

​Axles: 2 x 10,000 LBS Oil Bath Hubs Axles
Brakes: Electric Drum Brakes on both axles
Suspension Type: Spring

RUNNING GEAR

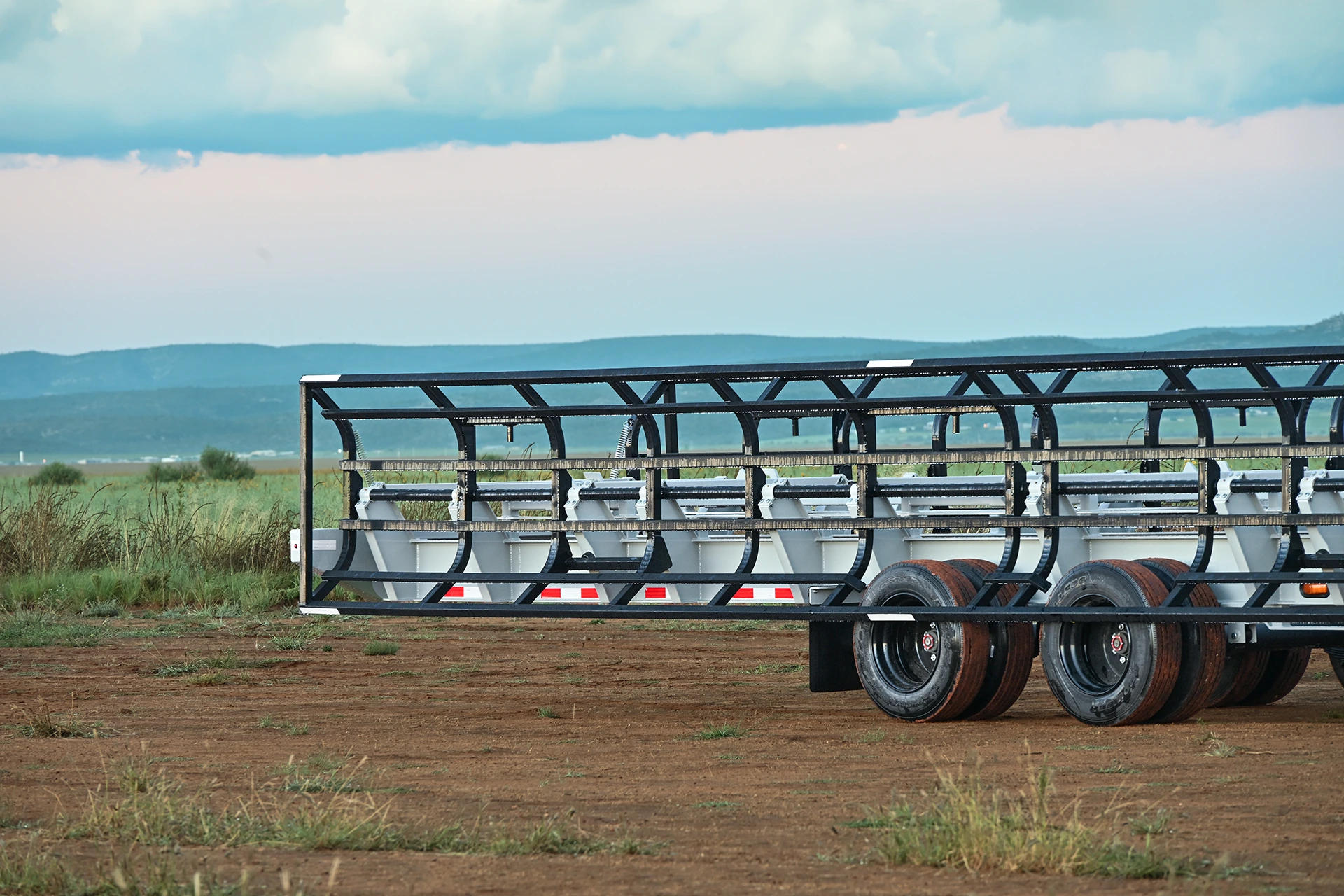

​Tires: Duals ST235-80R16 10PLY
Rims: Dual 16" Black Mod Wheels
Spare Tire: Spare Tire & Mount

ELECTRICAL

Battery: 1
Charging System: 8.5 amp 110V Intergraded Trickle Charger
Wiring Harness: Inclosed Wire Harness
Frame Wiring: 18 ga.

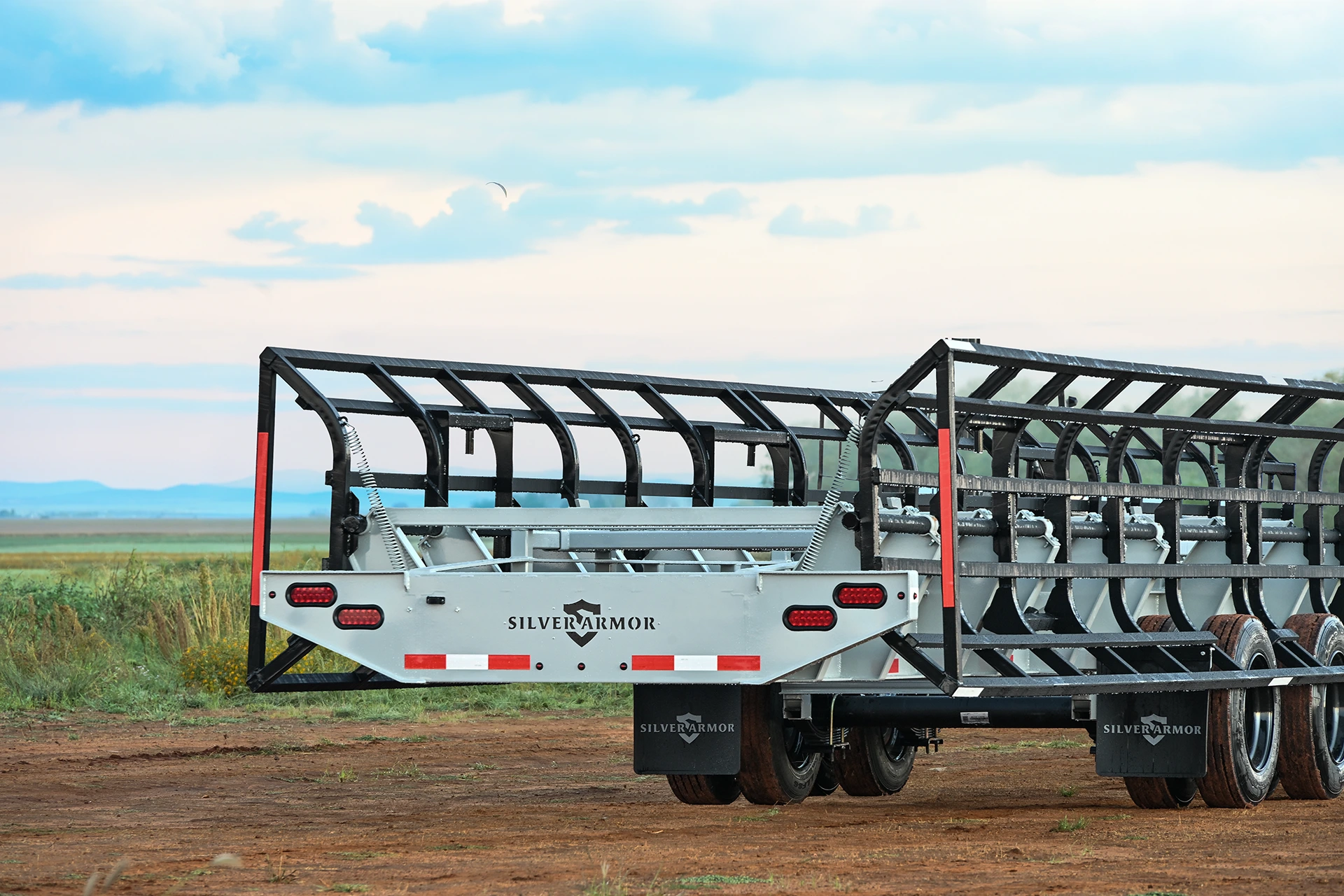

Side Lights: LED
Rear Lights: LED

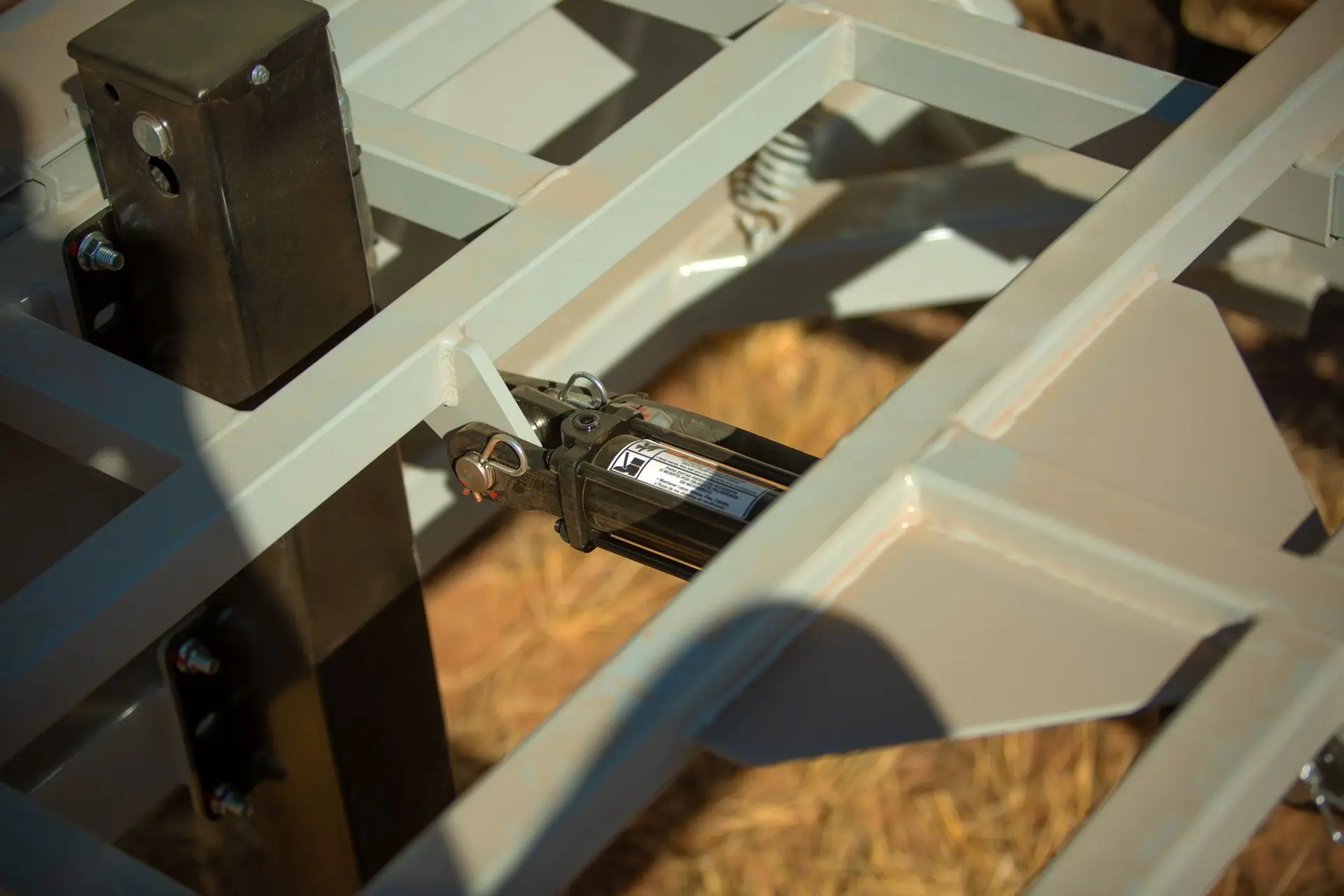

HYDRAULIC SYSTEM

Pump: 12V Dual Action Hydraulic Pump
Controller: Wired
